Indoor P20 Ultra-Thin Transparent LED Film Display with 2500Nits Brightness 1000mm x 80mm Cabinet Size and 2 Years Warranty
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
15days
Brand:
TBC
Product Description

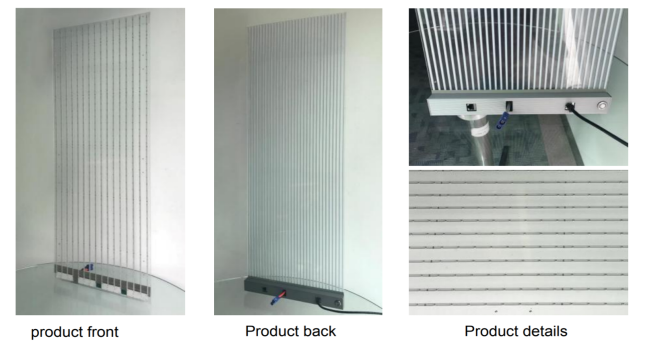

Indoor P20 Ultra-Thin Transparent LED Film Display
High-performance transparent LED display featuring 2500Nits brightness, 1000mm x 80mm cabinet size, 95% transparency, and 2-year warranty. Ultra-slim 4mm thickness with IP30 protection rating.
Technical Specifications
| Parameter | Value |
|---|---|
| Pixel Pitch | 20mm |
| Pixel | 2500points/㎡ |
| LED specification | SMD2020 |
| Pixel composition | 1R1G1B |
| Module Size | 1000mm*80mm |
| Weight | 6kg/㎡ |
| Transparency | ≥95% |
| Brightness | 2500cd/㎡ |
| Peak power consumption | 300 W/㎡ |
| Average power consumption | About 100 W/㎡ (depending on the video source) |
| Refresh frequency | ≥3840hz |
| Grayscale level | 16Bit |
| Maintenance | Front/rear |
| Brightness control level | Grade 0-255 |
| Color temperature | 3200K-8500K (adjustable) |
| Frame change frequency | ≥60Hz |
| Viewing angle | H-H140 degrees V-V140 degrees |
| Input signal | DVI VGA, composite video |
| Control screen mode | Synchronous box (computer control) or asynchronous box (WiFi connection mobile phone APP control, USB flash drive control) |
| Protection grade | IP30 |
| Power supply requirements | AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) |
| Working temperature | -20~50 ℃ |
| Theoretical service life | 100000 hours |
| Warranty | 2 years |
Key Advantages
- Ultra-High Transparency (≥95%) & Invisible When Off: Achieves nearly invisible effect when powered off while maintaining glass's natural lighting and visual transparency.
- Ultra-Slim (4mm) & Lightweight (≈6kg/㎡) Design: Reduces load pressure on glass surfaces and complies with tempered glass load-bearing standards.

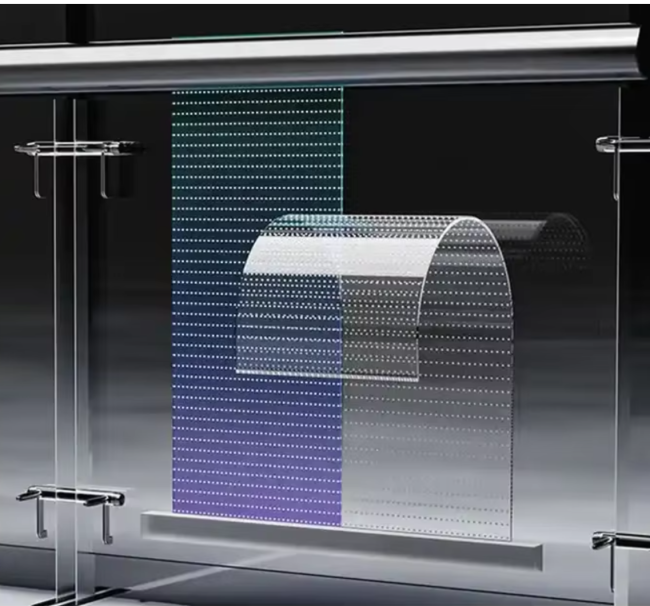

- Seamless Glass Integration: Nano-adhesive technology allows attachment to flat/curved glass while maintaining unobstructed views.
- Peel-and-Stick Installation: Industrial-grade adhesive backing enables quick deployment without professional tools, reducing installation time by 70%.
Application Scenarios
Core Application Areas
- Retail glass storefronts & in-store glass partitions
- Corporate lobbies, reception areas & office glass curtain walls
- Museum/exhibition hall cultural relic showcases & exhibition booths
- Hospitality venues (hotel lobbies, elevators & banquet halls)
- Public service spaces (airport terminals, hospital lobbies)
Scenario Value Proposition
This versatile transparent LED film screen is ideal for high-end commercial and public spaces requiring both visual transparency and dynamic digital display. By seamlessly integrating with glass surfaces, it enhances technological ambiance and improves brand communication efficiency - perfect for retail branding, corporate image display, exhibition presentations, and hospitality service upgrades.
