162inch COB All-in-one LED Display with Seamless Integration and Touch Remote Control for Video Conferencing
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
15days
Brand:
TBCLED
Product Description

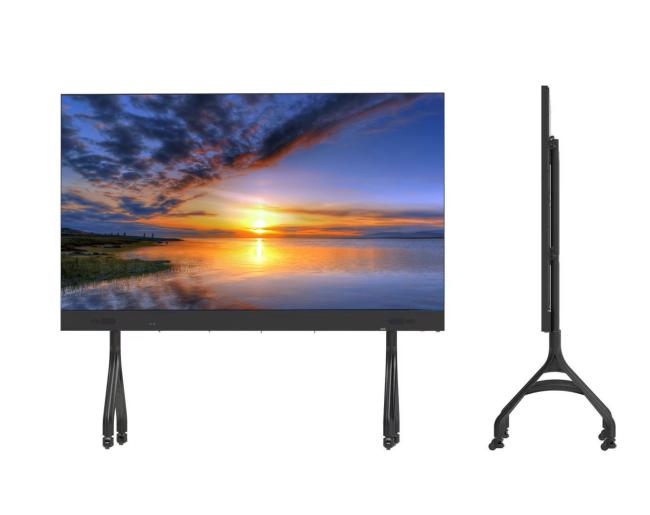

162-inch COB All-in-One LED Display with Touch Remote Control
Seamless integration for video conferencing and teaching applications with advanced touch remote control functionality.
Advanced All-in-One Design
Unlike traditional LED displays, our all-in-one solution integrates HUB board, power supply, and receiving card into a single unit. This eliminates the need for external sending cards, video processors, and complex wiring systems, reducing installation time, minimizing operational faults, and providing easy mobility across different spaces.
Technical Specifications
| Parameter | UT-C110 | UT-C135 | UT-C162 |
|---|---|---|---|
| Screen Size | 108" | 135" | 162" |
| Support Material | Aluminum | ||
| Panel Type | Flip COB | ||
| Resolution | 1920×1080 | ||
| Pixel Pitch (mm) | 1.2 | 1.56 | 1.875 |
| Brightness (cd/m²) | 600 | 550 | 550 |
| Contrast Ratio | 100000:1 | ||
| Viewing Angle | ≥160° (horizontal/vertical) | ||
| Grayscale | 22bit+ | 18bit+ | 18bit+ |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Protection Level | IP54 (surface clean with water) / IP30 (back) | ||
| Maintenance Mode | Front | ||
| Built-in System | Android/Windows dual system (Optional) | ||
| Android Version | Android 11 | ||
| Windows Configuration | I5 CPU + 8GB RAM + 128GB SSD | ||
| Wireless Screen Transfer | Android phones, iPhones, iPads, Windows computers, Macs | ||
| Conference Cloud Live Broadcast | Supported | ||
| Working Temperature | -20℃ to +60℃ | ||
| Working Humidity | 10%RH to 75%RH, No condensation | ||
| Maximum Power Consumption | 1300W | 2000W | 2700W |
| Average Power Consumption | 400W | 600W | 800W |
| Power Supply Voltage | AC 100-240V 50/60Hz | ||
| Weight | 135KG | 195KG | 260KG |
Key Features
Multiple Size Options for Large-Screen Meetings
Cinema-Grade Visual Experience with Green Meetings Solution
Utilizing advanced flip chip COB technology, the display delivers wide color gamut and high contrast ratio for vivid, brilliant visuals that capture every detail. Energy-efficient and environmentally friendly design promotes eye comfort while supporting paperless meeting initiatives.
High-Fidelity Stereo Surround Sound
Experience immersive cinema-grade sound effects with stereo surround sound. The system supports connection of external cameras, microphones, and other audio devices for comprehensive communication solutions.
Multi-Device and Multi-System Projection
Supports wireless screen casting from PCs, smartphones, tablets across Windows, iOS, and Android platforms. Capable of displaying up to 4 split screens for independent content sharing.
Interactive Touch Capabilities
Flexible Installation Options
Application Scenarios
Business Meetings
Supports 4K screen projection and four-way split-screen display with multiple projection and writing modes. Enables real-time information and data sharing among team members, enhancing meeting interactivity and participation. Compatible with third-party applications to meet diverse meeting requirements including internal meetings, project reports, and external customer communications.
Educational Environments
Ideal for classrooms and training centers as teaching display devices for video playback, material presentation, and remote teaching applications. The high-definition large-screen display helps students better comprehend and retain knowledge.
Monitoring Centers
In security monitoring facilities, clearly displays extensive surveillance footage with detailed clarity. Provides reliable visual references for security personnel, contributing to enhanced social security and stability.
