135inch COB All-in-one LED Display with Anti-collision and Multi-functional Touch for Conference and Video Teaching
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
15days
Brand:
TBCLED
Product Description

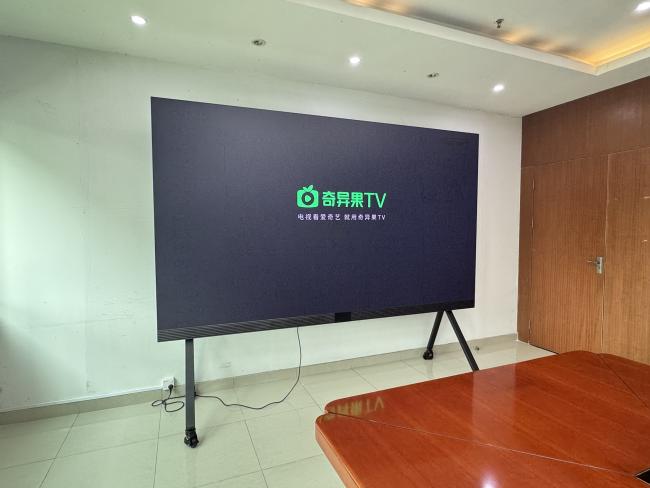

135-inch COB All-in-One LED Display
Anti-collision multi-functional touch remote video teaching conference LED all-in-one machine display with integrated design for simplified operation and maintenance.
Product Overview
Compared with traditional LED displays, our LED all-in-one system features an integrated HUB board, power supply, and receiving card design. This eliminates the need for external sending cards, video processors, and other traditional equipment, removing complex wiring, debugging operations, and reducing human operation faults. Easy installation, operation, maintenance, and mobility free you from space constraints.
Technical Specifications
| Model | UT-C110 | UT-C135 | UT-C162 |
|---|---|---|---|
| Size | 108" | 135" | 162" |
| Support Material | Aluminum | ||
| Panel Type | Flip COB | ||
| Resolution | 1920×1080 | ||
| Pixel Pitch (mm) | 1.2 | 1.56 | 1.875 |
| Brightness (cd/m²) | 600 | 550 | 550 |
| Contrast | 100000:1 | ||
| Viewing Angle | ≥160° (horizontal/vertical) | ||
| Grayscale (bit) | 22bit+ | 18bit+ | 18bit+ |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Protection Level | IP54 (surface clean with water) / IP30 (back) | ||
| Maintenance Mode | Front | ||
| Built-in System | Android/Windows dual system (Optional) | ||
| Android Version | Android 11 | ||
| Windows System Configuration | I5 CPU + 8GB RAM + 128GB SSD | ||
| Wireless Screen Transfer | Android phones, iPhones, iPads, Windows computers, Macs | ||
| Conference Cloud Live Broadcast | Supported | ||
| Working Temperature | -20℃ to +60℃ | ||
| Working Humidity | 10%RH to 75%RH, No condensation | ||
| Maximum Power Consumption | 1300W | 2000W | 2700W |
| Average Power Consumption | 400W | 600W | 800W |
| Power Supply Voltage | AC 100-240V 50/60Hz | ||
| Weight | 135KG | 195KG | 260KG |
Key Features
Multiple Size Options for Large-Screen Meetings
Cinema-Grade Visual Experience with Green Meetings Solution
The all-in-one display utilizes flip chip COB technology, offering a wide color gamut and high contrast ratio to deliver a truly vivid and brilliant visual experience that restores every real detail. Energy-saving, environmentally friendly, and comfortable for the eyes, ushering in a new era of paperless meetings.
High Fidelity Stereo Surround Sound
Immersive stereo surround sound with all-round cinema-grade sound effects. External cameras, microphones and other devices can be connected for enhanced audio capabilities.
Multi-Device and Multi-System Projection
Support for PC, cell phone, and Pad multiple terminals, as well as Windows, iOS and Android different platforms. Fast wireless screen casting with support for up to 4 split screen independent screen sharing.
Interactive Touch Capability
Flexible Installation Options
Product Advantages
- High safety protection: Professional COB packaging technology makes the display screen hard, collision resistant, and easy to maintain with daily wet cloth cleaning
- Surface lens package with dead lamp rate of only 3 parts per million, requiring minimal maintenance
- Advanced technology with fewer process steps and better quality control
- Simple design using integrated die-cast aluminum box for stability and heat dissipation
- Stronger protection with better sealing, waterproof design that can be scrubbed clean
Applications
COB All-in-One LED Display is widely used in efficient conference solutions across education, finance, technology, logistics, government agencies and other industries. Applications include conference rooms, home online classes, remote video conferencing, remote diagnosis conferences and various professional scenarios.
