Nova Series 500x500mm Lightweight Curvable Rental LED Screen with 3840Hz Refresh Rate for Dynamic Events
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
15 working days
Brand:
TBC LED
Product Description

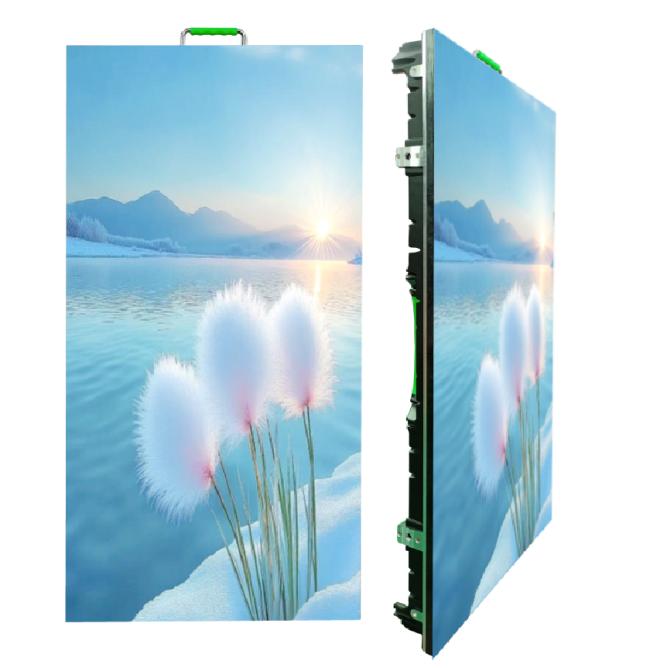

Nova Series 500x500 Rental LED Screen
Transform your event's visuals with the Nova Series 500x500mm Rental LED Screen—engineered for speed, creativity, and uncompromising quality. Boasting a 3840Hz refresh rate and detachable power module, this display redefines what's possible for live gatherings, from festivals to corporate keynotes.
Crafted with aerospace-grade die-cast aluminum, each panel weighs just 7.2kg and sits at 75mm thin—making transport and setup efficient for your team. High-brightness SMD LED modules deliver 16-bit color depth and 10,000:1 contrast, while the 3840Hz refresh rate ensures smooth motion for fast-paced sports replays or concert visuals with zero flicker.
Technical Specifications
| Specification | Giant 2.9mm | Giant 3.91mm | Giant 4.81mm |
|---|---|---|---|
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m² | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions (W x H) | 250 x 500mm | 250 x 250mm | 250 x 250mm |
| Panel Dimensions (mm) | 500 x 500 x 80 500 x 1000 x 80 |
500 x 500 x 80 500 x 1000 x 80 |
500 x 500 x 80 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 1 x 2 | 1 x 2 | 1 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000:1 | 5,000:1 | 5,000:1 |
| Average Power Consumption | 200 W/m² | 200 W/panel | 200 W/panel |
| Max Power Consumption | 650 W/m² | 650 W/panel | 650 W/panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP68 | IP68 | IP68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan |
Innovative Features
- Ultra-Portable Design: 7.2kg weight and 75mm profile cut load-in time by 30% compared to standard rental screens
- Flexible Curvature: Adjust panels between -12° to 12° to create concave/convex backdrops or curved stage designs
- Detachable Power Unit: Isolated power modules reduce electrical interference and allow component swapping mid-event without display disruption
- 90° Seamless Corners: Specialized 45° edge cabinets eliminate gaps for professional corner displays
- Dual-Access Maintenance: Magnetic front panels and rear port access enable pixel issue resolution in 2 minutes
- Hybrid Module Compatibility: Mix 500x500mm and 500x1500mm panels to build custom layouts
Applications
Ideal for outdoor festivals (with IP65 water resistance), indoor corporate galas, and sports arenas. The 6000 nits brightness cuts through sunlight, while the robust aluminum frame withstands crowd jostling or weather fluctuations.
Benefits for Rental Teams
The 3840Hz refresh rate ensures client satisfaction with broadcast-quality visuals, while the modular design slashes assembly time. Detachable power units reduce long-term maintenance costs, and the lightweight build lowers shipping fees—maximizing your fleet's ROI.
