SlimDual 53mm Ultra-Slim Double-Sided LED Video Wall with 5000:1 Contrast Ratio and Front Access Maintenance
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
25days
Brand:
TBC
Product Description

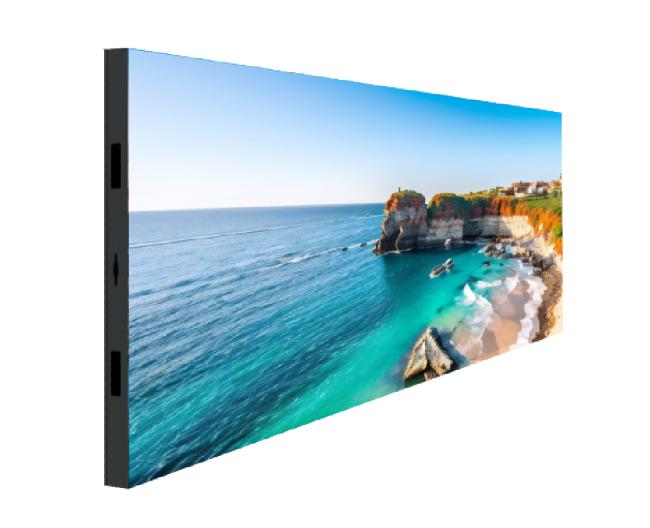

SlimDual Double-Sided LED Display
Introducing the SlimDual Double-Sided LED Display—a revolutionary visual solution that combines portability, performance, and versatility to help businesses stand out in competitive markets. Designed for modern brands seeking maximum visibility and engagement, this double-sided LED screen features an ultra-slim 53mm profile, 7kg lightweight cabinet, and high-contrast display suitable for both indoor and semi-outdoor applications.
Core Features
- Lightweight & Ultra-Slim Design: At just 7kg and 53mm thick, the cabinet is easy to transport, install, and mount—perfect for temporary events or permanent installations in space-constrained areas.
- Dual-Sided Flexibility: Configure each side with different pixel pitches, brightness levels, and content, allowing you to tailor your message to two audiences or use cases.

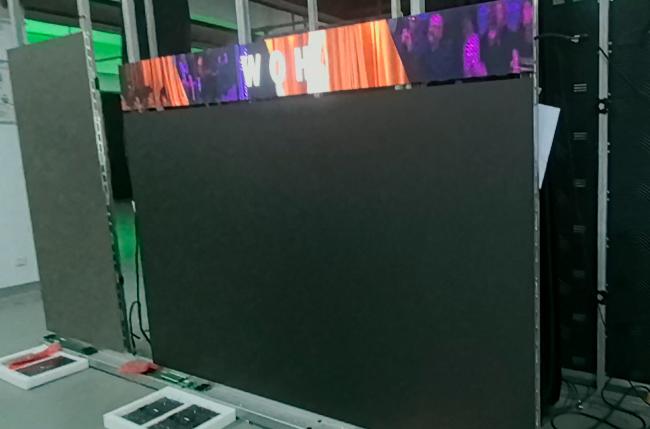

- Front Access Maintenance: The automatic adsorption module design enables tool-free front maintenance, letting you quickly replace or repair modules without disrupting the display.
- Seamless UHD Splicing: Cabinets can be seamlessly spliced to create 2K, 4K, 8K, or 16K UHD displays, making it ideal for large-scale venues.
- High Brightness & Uniformity: With brightness levels up to 1000 nits and ≥97% brightness/color uniformity, the screen delivers consistent, vivid visuals across the entire display.
- Energy Efficiency & Durability: Operating at an average power consumption of 100-200W per square meter, the SlimDual reduces energy costs and operates reliably in a wide temperature range (-20℃ to 60℃).
Applications
- Retail & E-Commerce: Install in storefronts, mall kiosks, or pop-up shops to showcase product launches and promotional offers.
- Hospitality & Tourism: Use in hotel lobbies, resorts, or tourist attractions to display event schedules and welcome messages.
- Corporate & Events: Deploy in conference rooms, trade show booths, or corporate events for dual-sided presentations and brand storytelling.
- Transportation & Public Spaces: Install in airports, train stations, or city centers to provide real-time travel updates and advertising.
- Education & Museums: Use in museums, galleries, or universities to display exhibits and educational content.
Technical Specifications
| Parameter | P1.95 | P2.5 | P2.976 | P3.91 |
|---|---|---|---|---|
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Physical Density (Dot/sqm) | 262144 | 160000 | 112896 | 65536 |
| Module Resolution | 128×128 | 100×100 | 84×84 | 64×64 |
| Brightness (Nits) | 700 | 800-1000 | 800-1000 | 1000 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Max Power Consumption (W/sqm) | 800 | 800 | 800 | 800 |
Additional Specifications
Color Temperature: 3200-9300K Optional
Gray Level: 14/16 bit Optional
Viewing Angle: 160°/160° (V/H)
Brightness/Color Uniformity: ≥97%
Contrast: 5000:1
Power Input: AC90-264V, 47-63Hz
Working Temperature/Humidity: -20~60℃/10%~85%
Storage Temperature/Humidity: -20~60℃/10%~85%
Certifications: CCC/CE/RoHS/FCC/CB/TUV/IEC
Gray Level: 14/16 bit Optional
Viewing Angle: 160°/160° (V/H)
Brightness/Color Uniformity: ≥97%
Contrast: 5000:1
Power Input: AC90-264V, 47-63Hz
Working Temperature/Humidity: -20~60℃/10%~85%
Storage Temperature/Humidity: -20~60℃/10%~85%
Certifications: CCC/CE/RoHS/FCC/CB/TUV/IEC
Why Choose SlimDual?
The SlimDual Double-Sided LED Display is more than just a screen—it's a versatile communication tool that helps maximize your reach and engagement. Its lightweight, slim design makes installation effortless, while dual-sided flexibility lets you accomplish more with less space. With front maintenance, seamless splicing, and energy-efficient performance, this display is built to meet the demands of modern businesses. Whether promoting your brand, informing your audience, or enhancing your events, the SlimDual delivers the clarity, versatility, and reliability you need.
