TBC HighBright Dual LED Video Wall – 1000Nits High Brightness Double-Sided Display with 3840Hz Refresh Rate for Semi-Outdoor Use
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
25days
Brand:
TBC
Product Description

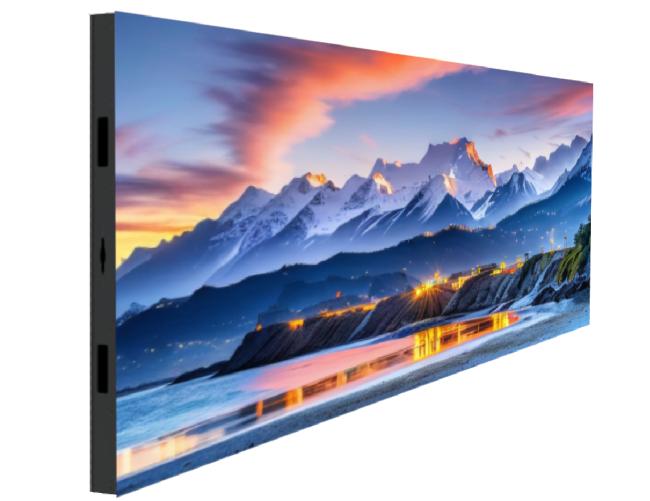

TBC HighBright Dual LED Screen – 1000Nits Double-Sided Display
The TBC HighBright Dual LED Screen is engineered for businesses requiring exceptional double-sided visibility in challenging lighting conditions. This high-performance double-sided display features maximum brightness of 1000nits, 3840Hz ultra-high refresh rate, and rugged construction designed for reliable semi-outdoor and bright indoor applications.
Key Performance Features
- 1000Nits High Brightness: P3.91 model delivers 1000nit brightness engineered to cut through direct sunlight
- Asymmetric Double-Sided Design: Configure each side with different pixel pitches, brightness levels, and content streams
- 3840Hz Ultra-High Refresh Rate: Eliminates flicker for smooth video playback and camera compatibility
- Durable Aluminum Profile Cabinet: Weather-resistant construction (7kg/pc, 53mm thick) withstands temperature fluctuations and humidity
- Front Access Maintenance: Tool-free module replacement for easy servicing without disassembly
Technical Specifications
| Parameter | P1.95 | P2.5 | P2.976 | P3.91 |
|---|---|---|---|---|
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Physical Density (Dot/sqm) | 262,144 | 160,000 | 112,896 | 65,536 |
| Brightness (Nits) | 700 | 800-1000 | 800-1000 | 1000 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Max Power Consumption (W/sqm) | 800 | 800 | 800 | 800 |
Environmental Specifications
Operating Temperature: -20℃ to 60℃
Operating Humidity: 10% to 85% RH
Storage Temperature: -20℃ to 60℃
Storage Humidity: 10% to 85% RH
Certifications: CCC/CE/RoHS/FCC/CB/TUV/IEC
Operating Humidity: 10% to 85% RH
Storage Temperature: -20℃ to 60℃
Storage Humidity: 10% to 85% RH
Certifications: CCC/CE/RoHS/FCC/CB/TUV/IEC
Ideal Applications
- Semi-Outdoor Advertising: Building facades, plaza kiosks, stadium concourses
- Transportation Hubs: Airports, train stations, and terminal areas
- Retail Environments: Mall entrances, atriums, and large retail storefronts
- Sports Venues: Stadium concourses and outdoor seating areas
- Commercial Spaces: Bright indoor areas requiring double-sided visibility
The TBC HighBright Dual is the ultimate double-sided LED screen solution for semi-outdoor and bright indoor use. With 1000nit high brightness, asymmetric double-sided design, and rugged construction, this display delivers professional-grade performance with hassle-free operation—backed by TBC's industry-leading quality and global support.
