P1.538mm Pixel Pitch Flexible LED Screen with 7680Hz Refresh Rate and Front Service Maintenance for Ultra-HD Curved Displays
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
15 working days
Brand:
TBC LED
Product Description

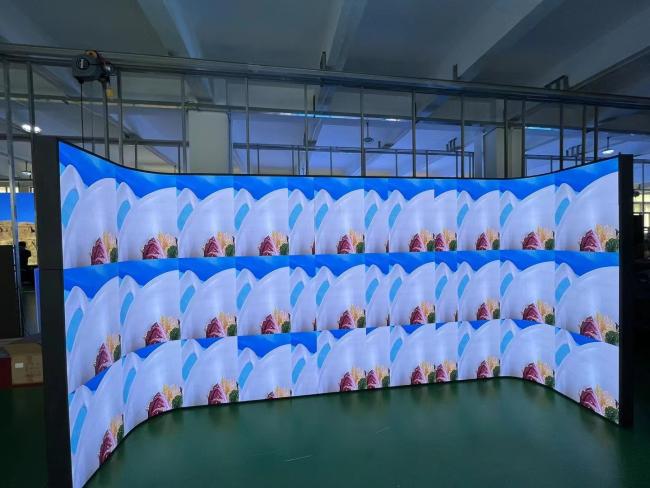

P1.538 Indoor Flexible LED Screen – Ultra-HD Curvable Display for Creative & Immersive Spaces
Meet the next generation of creative visual solutions: our P1.538mm Indoor Flexible Curved LED Screen, engineered to break free from traditional flat-panel limitations and unlock unlimited design possibilities. Built on advanced soft-module technology, this display delivers stunning high-definition imagery, ultra-smooth motion, and unmatched bending capability to fit cylinders, waves, corners, spirals, and custom artistic shapes. Perfect for museums, science and technology centers, art galleries, creative centers, and immersive exhibition halls, it transforms ordinary spaces into unforgettable visual experiences.
Technical Specifications
| Parameter | Value |
|---|---|
| Pixel Pitch | 1.538 mm |
| Density | 429024 dots/m² |
| LED Type | SMD1010 |
| Panel Size | 960 mm × 800 mm |
| Module Size | 320 mm × 160 mm |
| Panel Resolution | 624 × 520 dots |
| Panel Material | Cold steel |
| Screen Weight | 46 KG |
| Drive Method | 1/32 Scan |
| Gray Scale | 65536 |
| Brightness of White Balance | 600 nits |
| Refresh Rate | ≥7680 Hz |
| Input Voltage | AC110V/220V ±10% |
| Max Power Consumption | 500W |
| Average Power Consumption | 160W |
| Application | Indoor |
| Maintenance Way | Front Service |
| Life Span | 100,000 Hours |
Advanced Module Technology
At the core of this flexible display lies a 320mm × 160mm standardized soft LED module, built on a high-strength flexible FPC circuit board and equipped with reinforced locking and connecting mechanisms. Unlike traditional rigid LED panels that rely on glass fiber PCB and struggle with tight curves, our soft module uses rubber-based masks and bottom shells, offering exceptional compression resistance, torsion resistance, and long-term durability. This design completely solves the long-standing challenges of seams, uneven surfaces, moire patterns, and inconsistent brightness found in conventional curved screens.
Superior Visual Performance
The P1.538mm pixel pitch delivers ultra-high definition for close-viewing environments, with a recommended viewing distance between 1-4 meters. Paired with high-contrast SMD LEDs, a 14-16-bit grayscale system, and a blazing-fast 7680Hz refresh rate controlled by NOVA Star MRV412N receiving cards, the screen produces sharp, fluid, and flicker-free imagery with zero delay or smearing. The wide 140°/140° viewing angle ensures consistent color and clarity from almost any position, while the 5000:1 high contrast ratio delivers deep blacks and vivid colors for lifelike visual performance.
Easy Installation & Maintenance
Designed for simplicity and versatility, the module uses strong magnetic adsorption installation for fast, tool-free setup and slight adjustments to ensure perfect flatness. The cabinet is constructed from heavy-duty cold-rolled steel with a specialized segmented splicing process that minimizes gaps and enhances overall structural stability. The entire module measures only 8mm thick, offering an ultra-slim, lightweight form factor that saves space and eases installation on curved walls, columns, and irregular surfaces. For specialized environments, the power supply supports front-access maintenance, allowing for safe and convenient servicing even in confined installations.
Reliability & Certification
This flexible LED display operates reliably in demanding indoor environments and holds CE, RoHS, FCC, and ETL certifications, ensuring global compliance and safety. With a brightness output of 600cd/m², it performs beautifully in ambient lighting while maintaining energy efficiency and low heat generation thanks to its low-current driving design.
Customization & Support
Backed by our 10+ years of professional manufacturing experience, we offer short lead times, wholesale pricing, flexible MOQ, and full OEM/ODM customization to match your project's unique requirements. Whether you need a cylindrical pillar display, wavy ribbon screen, spiral-shaped artistic installation, or seamless curved video wall, our P1.538 Flexible LED Screen brings your creative vision to life with precision and performance.
Key Specifications
Pixel Pitch: 1.538mm
Module Size: 320mm × 160mm
Cabinet Material: Cold-rolled Steel
Refresh Rate: 7680Hz
Grayscale: 16-bit
Brightness: 600cd/m²
Contrast Ratio: ≥5000:1
Viewing Angle: 140°/140°
Certifications: CE, RoHS, FCC, ETL
Installation: Fully customizable curves, magnetic front maintenance
