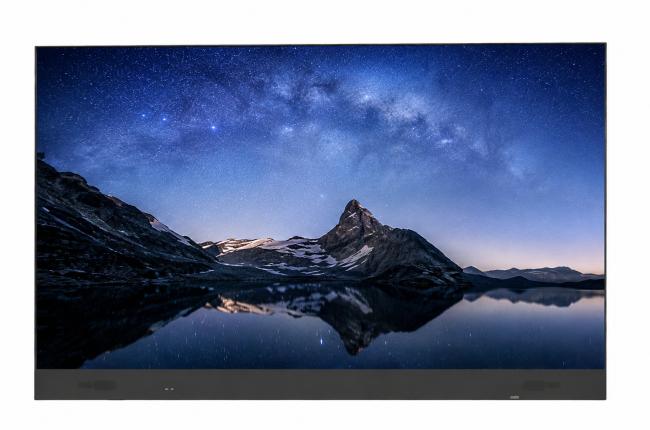

217-inch P1.25 Pixel Pitch COB All-in-One Interactive Display with 3840×2160 4K Resolution and 20000:1 Contrast Ratio
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
21 working days
Brand:
TBCLED
Product Description
217 inches P1.25 Full HD LED All in one TV, Wall-Mounted COB Interactive All-in-One Screen
Product Overview
Transform your corporate meeting environments with our advanced wall-mounted COB interactive all-in-one screen. This integrated solution eliminates common issues with traditional office display equipment, providing a fully digital, eco-friendly workspace that enhances communication efficiency and elevates brand presence in boardrooms, training halls, and multi-functional conference spaces.
Key Advantages:
- Eliminates messy projection equipment and blurry displays
- Zero lag touch writing for seamless collaboration
- Premium flip chip COB packaging technology
- Native 4K UHD resolution with incredible clarity
- 20-point simultaneous multi-touch functionality
- Dual operating system options (Android/Industrial PC)
Technical Specifications
| Specification | Details |
|---|---|
| Model | UT-C Series 217" COB All-in-One Interactive Display |
| Pixel Pitch | P1.25 mm |
| Active Display Area | 4800 × 2700 mm |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 100 ~ 600 nits (Adjustable) |
| Contrast Ratio | 20000:1 |
| Viewing Angle | 160° Horizontal / 160° Vertical |
| Operating System | Android OS / Industrial PC System (Optional) |
| Input Power | AC 100 ~ 240 V, 50/60 Hz |
| Color Temperature | Adjustable |
| Refresh Rate | 3840 Hz |
| Color Bit Depth | 14 bit |
| Max Power Consumption | 4000 W |
| Typical Power Consumption | 1200 W |
| Maintenance Type | Front-access Service |
| Operation Duty | 24/7 Continuous Operation Supported |
| LED Mounting Process | LED chips assembled on PCB via automatic SMT process |
| Module Surface Treatment | Matte light-absorbing anti-reflection coating |
| Cabinet Material | Die-cast Aluminum Alloy |
| Gross Weight (Including Wall Bracket) | 320 kg |
| HDMI Interface | 5 × HDMI 2.0 Ports |
| RS-232 Interface | Full-duplex bidirectional DB9 serial port for central control |
| Timed Power Management | Built-in timer for auto power on/off scheduling |
| Local Physical Control | Chassis-mounted physical buttons for manual operation |
| External Audio Output | Audio output interface for external audio system expansion |
| Wireless Control | Supplied with dedicated wireless IR remote controller |
| Interface Layout | Interfaces pre-installed on display cabinet |
| Alternative Wiring Scheme | Audio & video signals can be wired internally or via rear terminals |
| Structural Form | Factory pre-assembled all-in-one integrated unit |
| Built-in Audio | Integrated loudspeaker system |
| Installation Mode | Wall-mount compatible |
| LED Service Life | ≥ 100,000 Hours |
| Production Status | Mass-produced, readily available |
| Mounting & Pre-installation | Metal wall-mount brackets with complete technical documentation |
| Overall Dimensions | W 4830 mm × H 2826 mm × D 29.5 mm |
Advanced Features
- Ultra-Precise Touch Technology: 1mm positioning accuracy with only 9ms touch delay
- Multi-User Collaboration: 20-point simultaneous touch enables group brainstorming
- Cross-Platform Compatibility: Supports wireless screen casting from all mainstream devices
- Multi-Zone Display: Four separate split zones for simultaneous content playback
- Pre-Programmed Scene Modes: General Daily, Soft Display, Cinema, and Remote Conference modes
- Eye-Friendly Display: Adjustable brightness and color temperature reduces visual fatigue
- Professional Audio: High-fidelity surround sound with external expansion capabilities

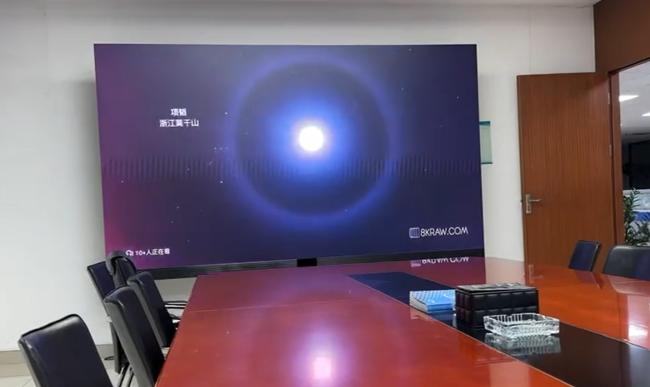

Ideal Application Scenarios:
Enterprise board meetings, large-scale corporate conferences, employee training workshops, and remote cross-branch video conferences.
Enterprise board meetings, large-scale corporate conferences, employee training workshops, and remote cross-branch video conferences.
