X Series P2.97 P3.91 7.5kg Rental LED Display Stage LED Screen for Events
Transform your live events with the X Series 500×500mm & 500×1000mm Rental LED Display, built for fast-paced stage, corporate and festival applications with a refresh rate over 7680Hz and flexible modular construction. This professional rental LED panel delivers sharp, lifelike visuals for event creators who demand reliable performance and seamless on-site setup.

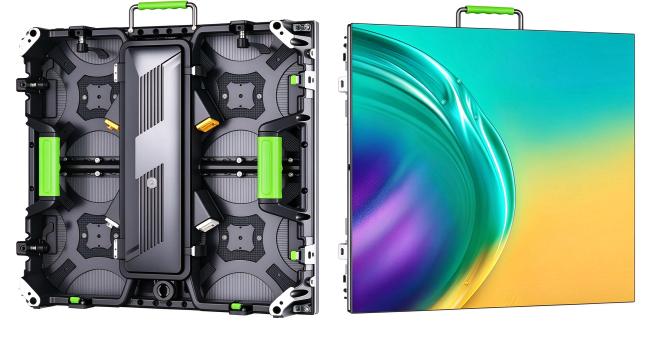

Manufactured from lightweight die-cast aluminum, the 500×500 cabinet weighs only 7.5kg with an 82mm depth. Lightweight construction greatly cuts down transportation burden and speeds up assembly and teardown, even for large-scale video walls. Equipped with SMD LED chips, these rental screens render rich, natural colors. The >7680Hz high refresh rate eliminates screen flicker and motion blur, ensuring crystal-clear playback for live performances and dynamic video content.
- Lightweight & Robust Build: 82mm thin cabinet and 7.5kg weight for easy handling without sacrificing structural strength.
- 90° Corner Installation: 45° angled corner cabinets enable seamless 90-degree video wall corners for immersive stage backdrops.
- Modular Power Design: Detachable power box reduces signal interference, improves image stability and simplifies on-site inspection.
- Adjustable Curvature: Cabinets can bend from -10° to +10° in 2.5° increments, supporting both concave and convex curved screen designs.
- Rear Maintenance Design: All servicing is completed from the rear of the cabinet for quick troubleshooting during events.

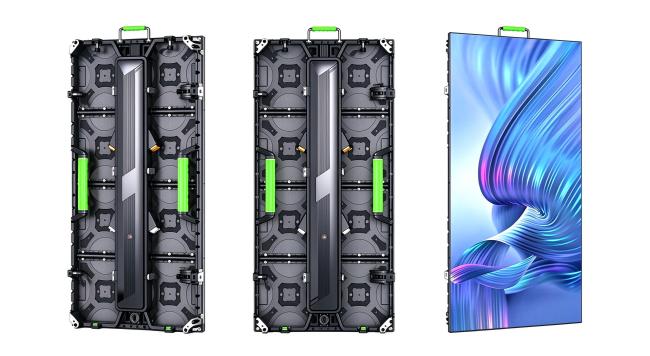

- Mixed Cabinet Compatibility: Freely combine 500×500mm and 500×1000mm cabinets to create custom screen sizes for any venue.

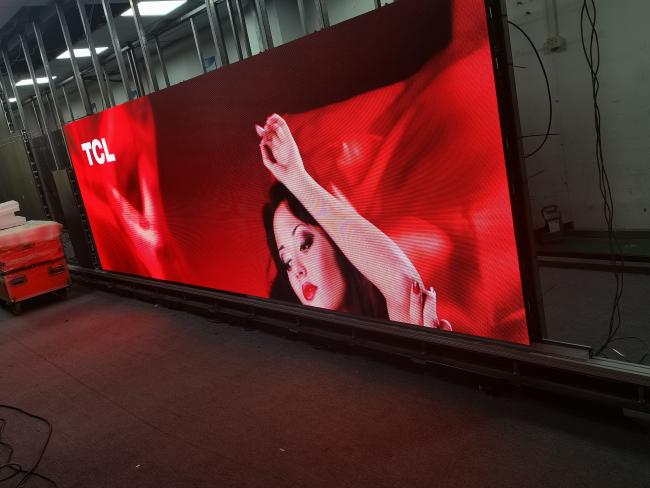

Perfect for indoor and outdoor rental LED screens for concerts, corporate events, exhibition booths and sports venues. Fast assembly and disassembly make this video wall ideal for temporary rental projects.

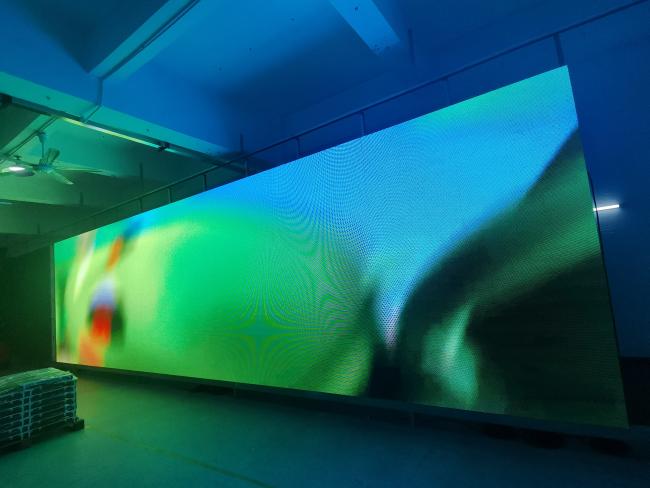

The >7680Hz high refresh rate delivers flicker-free images even under bright stage lighting. The modular system supports unlimited custom layout combinations with rear maintenance to minimize downtime. Adjustable brightness is available: standard brightness 4500–5000 nits, optional high brightness version reaches 6000–7000 nits. Bring stunning visual experiences to every event.
| Specification | X 2.9mm | X 3.91mm |
|---|---|---|
| Pixel Pitch | 2.976mm | 3.91mm |
| Pixel Configuration | SMD1415 | SMD1921 |
| Pixel Density | 86,016 pixels/m² | 65,536 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 |
| Panel Dimensions (mm) | 500 × 500 × 82 500 × 1000 × 82 |
500 × 500 × 82 500 × 1000 × 82 |
| Modules Per Cabinet (W × H) | 1 × 2 | 1 × 2 |
| Module Resolution | 168 × 84 | 128 × 64 |
| Cabinet Resolution | 168 × 168 / 168 x 332 | 128 × 128/ 128 x 256 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 3,000:1 | 3,000:1 |
| Average Power Consumption | 320 W/Sqm | 300 W/panel |
| Max Power Consumption | 900 W/Sqm | 800 W/panel |
| Brightness | Normal: 4500–5000 nits High brightness optional: 6000–7000 nits |
Normal: 4500–5000 nits High brightness optional: 6000–7000 nits |
| Refresh Rate | >7,680Hz | >7,680Hz |
| Vertical Viewing Angle | 140° | 140° |
| Horizontal Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Rear |
| IP Rating (Front/Rear) | IP 68 / IP 68 | IP 68 / IP 68 |
| Operating Temp/Humidity | -20ºC – 50ºC / 10% – 90% | -20ºC – 50ºC / 10% – 90% |
| Storage Temp/Humidity | -20ºC – 50ºC / 10% – 90% | -20ºC – 50ºC / 10% – 90% |
| Scan Method | 1/21 Scan | 1/16 Scan |
