Front Service Outdoor Led Billboard P5 High Definition With Reliable Performance

Price Negotiable

Price: Negotiable

MOQ: 10sqm

Delivery Time: 15days

Brand: TBC

Product Description

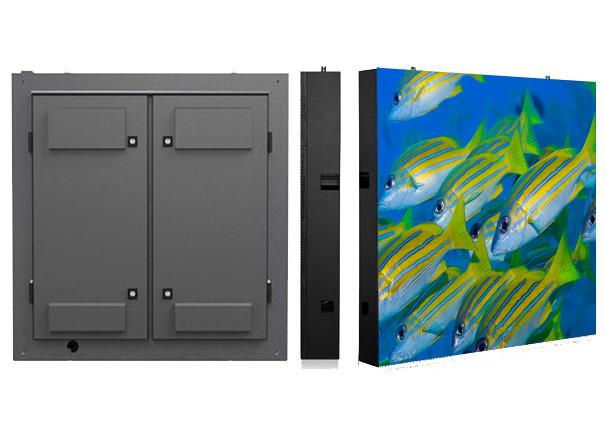

Front Service SMD P5mm Outdoor Led Billboard Signage High Definition Reliable Performance

Application:

Front Service SMD P5mm Outdoor Led Billboard Signage High Definition Video Wall are the most easy maintenance outdoor led message sign in the market, annual sales over 20,000 sqm. High Visibility, high clarify and intelligent cabinet design making it number one choice for outdoor led billboard.

Features and Advantages:

1. High brightness, ≥6000CD/m2

2. IP65 grade, all weather available

3. High referesh rate, ≥1920Hz

4. Gray scale ≥65536

Adopt superior quality SMD 3 in 1 LED lamp, gorgeous color performance.

High brightness LED lamps with wide viewing range and low driving current, consuming less power.

Parameters

Brightness	nits	6000
Color temperature	deg.k	3200 ~ 9300
Viewing angle - Horizontal	deg.	160(+80/-80)
Viewing angle - Vertical	deg.	160(+80/-80)
Cabinet weight	kg	53
Cabinet width	mm	960
Cabinet height	mm	960
Cabinet depth	mm	150
Cabinet area	sq. m.	0.92
Cabinet material		Cold Steel
Aspect ratio		1:1
Ingress protection (Front/Rear)	IP	IP65/IP54
Operating temperature range	deg. C	- 20 to 50
Operating humidity range	HR	10％ to 90％
Pixel type and configuration	R/G/B	SMD 3in1
Pixel pitch	mm	5
Pixel matrix per cabinet		192x192
Pixels per cabinet		36864
Lines per meter		200
Pixels per sq. meter		40000
LEDs per sq. meter		40000
Recommended minimum viewing distance	m	5
Colours		281trillion
Gray scale	Levels	65536 levels per colour
Brightness control	Levels	100
Digital processing	bit	16
Frame rate	Hertz	60
Display refresh rate	Hertz	1920
Input voltage	VAC	110/240
Input power frequency	Hertz	50/60
Input power (max/avg)	Watts per sq.m	920/320
MTBF	Hours	≥10000
Lifetime (50%Brightness)	Hours	≥100000
Module brightness uniformity		＜5％
Blind spot rate		＜0.0001
Earth leakage current	mA	＜2
Red wavelength	nm	623
Green wavelength	nm	525
Blue wavelength	nm	470
Panel input format (with video processor)		VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection		CAT6 cable/Fiber
Operating system		Windows(XP/Vista/7/8/10)
Control distance		Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
