Vietnam Wedding Exhibition Work with TBC D Series Indoor High Refresh Rate High Greyscale

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: Negotiable

Brand: TBC

Product Description

Vietnam Wedding Exhibition Work with TBC D Series Indoor High Refresh Rate High Greyscale

Application:

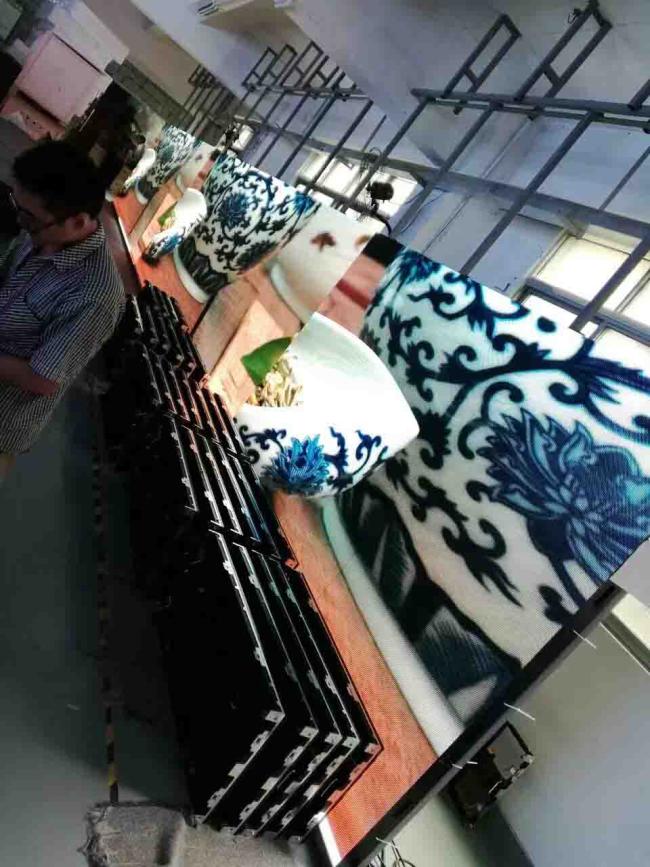

The wedding exhibition was held every year, this time many different lighting and decoration were applied. TBC D series is one of them, serves as main display on the stage.

Features and Advantages:

One person can do assembling and disassembly

Handle and fast lock design enable quick and convenient assembling and disassembly, one man is one working group.

One person quick maintenance

Light weight cabinet, 8kg per panel

Front service design, allows module service from the front.

One panel available for +/- 5% concave and convex curves

Patented high precision curving blocks support 0-10° concave curve and 0 -5°
convex curve(customized).

Parameters:

Brightness	nits	4200
Color temperature	deg.k	3200 ~ 9300
Viewing angle - Horizontal	deg.	140(+70/-70)
Viewing angle - Vertical	deg.	140(+70/-70)
Cabinet weight	kg	9
Cabinet width	mm	500
Cabinet height	mm	500
Cabinet depth	mm	80
Cabinet area	sq. m.	0.25
Cabinet material		Aluminum
Aspect ratio		1:1
Ingress protection (Front/Rear)	IP	IP65/IP43
Operating temperature range	deg. C	- 20 to 50
Operating humidity range	HR	10％ to 90％
Pixel type and configuration	R/G/B	SMD 3in1
Pixel pitch	mm	4.81
Pixel matrix per cabinet		104x104
Pixels per cabinet		10816
Lines per meter		208
Pixels per sq. meter		43264
LEDs per sq. meter		43264
Recommended minimum viewing distance	m	5
Colours		281trillion
Gray scale	Levels	65536 levels per colour
Brightness control	Levels	100
Digital processing	bit	16
Frame rate	Hertz	60
Display refresh rate	Hertz	1440
Input voltage	VAC	110/240
Input power frequency	Hertz	50/60
Input power (max/avg)	Watts per sq.m	750/260
MTBF	Hours	≥10000
Lifetime (50%Brightness)	Hours	≥100000
Module brightness uniformity		＜5％
Blind spot rate		＜0.0001
Earth leakage current	mA	＜2
Red wavelength	nm	623
Green wavelength	nm	525
Blue wavelength	nm	470
Panel input format (with video processor)		VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection		CAT6 cable/Fiber
Operating system		Windows(XP/Vista/7/8/10)
Control distance		Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
