P10 Outdoor Stadium Perimeter Led Display Smd Ip65 6000 Nits With Uv Proof
Pixel 10mm Football Stadium Perimeter Led Screen Display Outdoor IP65 UV Proof

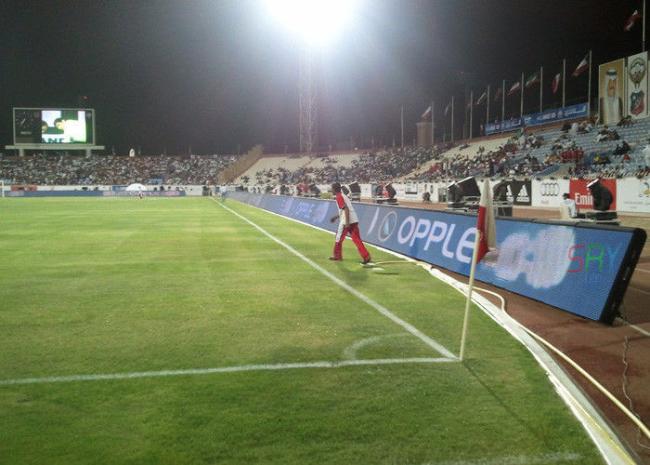

Pixel 10mm Football Stadium Perimeter Led Screen Display Outdoor IP65 UV Proof are the most durable design of led stadium perimeter for outdoor use, it's durable, reliable and easy to use, widely applied for all kinds of football, basket ball stadium.
1. Angle adjustable back bracket. User can adjust the best viewing angle for audience. When rental and fix installation, the bracket can be easily folded on the cabinet.
2. New structure design. Meet the needs of rental led, stadium perimeter and fixed installation. This multi-functional cabinets makes the new items easily and conveniently applied in different location and application.
3. Rubber protector for top of cabinet. Use soft material for the player protection and can reduce the outside impact. It efficiently protect the player from injury.
4. Aluminum alloy is used for the cabinet to reduce weight and achieve convenience.
| Brightness | nits | 6000 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle - Horizontal | deg. | 160(+80/-80) | ||
| Viewing angle - Vertical | deg. | 160(+80/-80) | ||
| Cabinet weight | kg | 50 | ||
| Cabinet width | mm | 960 | ||
| Cabinet height | mm | 960 | ||
| Cabinet depth | mm | 150 | ||
| Cabinet area | sq. m. | 0.92 | ||
| Cabinet material | Cold Steel | |||
| Aspect ratio | 4:3 | |||
| Ingress protection (Front/Rear) | IP | IP65/IP54 | ||
| Operating temperature range | deg. C | - 20 to 50 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 10 | ||
| Pixel matrix per cabinet | 96x96 | |||
| Pixels per cabinet | 9216 | |||
| Lines per meter | 100 | |||
| Pixels per sq. meter | 10000 | |||
| LEDs per sq. meter | 10000 | |||
| Recommended minimum viewing distance | m | 10 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 1920 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 960/330 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||
