40mm Thickness HD LED Display P3.8mm Flexible Soft Module Nation Star ICN Driver IC 3840Hz
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
25days
Brand:
TBC
Product Description
Indoor HD P3.8mm Concave and Convex Curved Led Soft Module 1'x 1' ICN Driver IC
Application:
FLEXIBLE MODULE
Is compatible for concave, convex, round, S shape led screen, to be used for any kind of creative stage design, shopping mall, column, with reliable quality and easy maintenance
Features and Advantages:
INNOVATIVE DESIGN

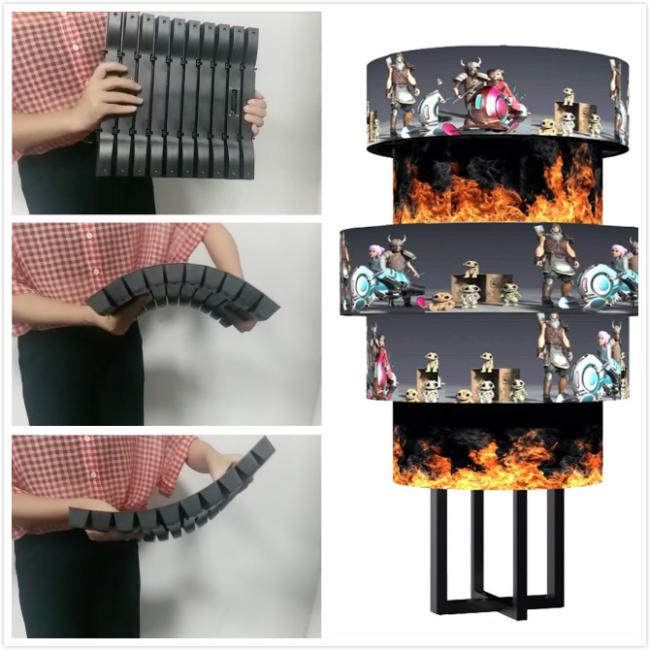

Flexible shape are possible to be made from concave, convex, and S shape led screen etc
Flexible Module with Housing in Segment
No limits to your design
Flexible Module with Housing in Segment
No limits to your design
FRONT SERVICE MAGNETIC DESIGN
Tiles made from magnesium, and is front accessible
POWER AND DATA INTEGRATED INPUT
One input combined power and data, save time for assembly and also enable the stability
INDEPENDENT CONTROL BOX
Independent control box could be fixed separately from the structure and module
CABLING WAY
One control box has 3 output, each output control 2 module, 6 on 1 control box
INTELLIGENT DESIGN
The degree between each segement is 8°, enable maximum 80 degree in convex and concave per module
The PCB and LED will not be damaged until housing was been broken apart
Less possility to be damaged during installation and maintenance
The PCB and LED will not be damaged until housing was been broken apart
Less possility to be damaged during installation and maintenance
Parameters
| Configuration | SMD2020 |
| Pixel Pitch | 3.81mm |
| Module Size(mm) | 304.8 x 304.8mm(1ft*1ft) |
| Module Resolution (pixels) | 80 x 80 pixels |
| Module Weight | 0.9kg |
| Color Depth | 12-16 bit |
| Colors | 4096-65536 |
| Refresh Rate(Hz) | ≥1920 Hz |
| Scan Mode | 43116 |
| Brightness | 800 nits |
| Viewing Distance (mm) | ≥ 3.8mm |
| Viewing Angle(°) | 110° |
| Input Voltage(V) | 100-240 V/ 50-60 Hz |
| Max Power Consumption | 350w/sqm |
| Ave Power Consumption | 105w/sqm |
| Temperature | -20 ℃/+50℃ (working) |
| ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) |
| IP Level | IP 40 / IP 21 |
| Humidity | 10%~60% (working) |
| 10%~90% (storage) | 10%~90% (storage) |
| Lifespan(hours) | 100000 |
| Installation Way | Fix |
| LED | Kinglight/Nationstar |
| IC | ICN2053 |
| Control Box | one control 8pcs modules |
