Nation Star Led Video Display Board High Definition P3.8mm IP68 12-16 Bit Color Depth
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
25days
Brand:
TBC
Product Description
308.4x308.4mm Outdoor High Definition P3.8mm Flexible Led Soft Module Nation Star Led
Application:
FLEXIBLE MODULE
Is a creative product which are compatible for concave, convex, round, S shape led screen, to be used for any kind of creative stage design, shopping mall, hotels, column, with reliable quality and easy maintenance function
Features and Advantages:
INNOVATIVE DESIGN
Flexible shape are possible to be made from concave, convex, and S shape led screen etc
Flexible Module with Housing in Segment
No limits to your design
Flexible Module with Housing in Segment
No limits to your design
FRONT SERVICE MAGNETIC DESIGN
Tiles made from magnesium, and is front accessible
POWER AND DATA INTEGRATED INPUT
One input combined power and data, save time for assembly and also enable the stability
INDEPENDENT CONTROL BOX
Independent control box could be fixed separately from the structure and module
CABLING WAY
One control box has 3 output, each output control 2 module, 6 on 1 control box
INTELLIGENT DESIGN
The degree between each segement is 8°, enable maximum 80 degree in convex and concave per module
The PCB and LED will not be damaged until housing was been broken apart
Less possility to be damaged during installation and maintenance
The PCB and LED will not be damaged until housing was been broken apart
Less possility to be damaged during installation and maintenance
Parameters
| Configuration | SMD2020 |
| Pixel Pitch | 3.81mm |
| Module Size(mm) | 304.8 x 304.8mm(1ft*1ft) |
| Module Resolution (pixels) | 80 x 80 pixels |
| Module Weight | 0.9kg |
| Color Depth | 12-16 bit |
| Colors | 4096-65536 |
| Refresh Rate(Hz) | ≥1920 Hz |
| Scan Mode | 43116 |
| Brightness | 5000 nits |
| Viewing Distance (mm) | ≥ 3.8mm |
| Viewing Angle(°) | 110° |
| Input Voltage(V) | 100-240 V/ 50-60 Hz |
| Max Power Consumption | 350w/sqm |
| Ave Power Consumption | 105w/sqm |
| Temperature | -20 ℃/+50℃ (working) |
| ‐40 ℃/ +60℃ (storage) | ‐40 ℃/ +60℃ (storage) |
| IP Level | IP 68 |
| Humidity | 10%~60% (working) |
| 10%~90% (storage) | 10%~90% (storage) |
| Lifespan(hours) | 100000 |
| Installation Way | Fix |
| LED | Kinglight/Nationstar |
| IC | ICN2053 |
| Control Box | one control 8pcs modules |

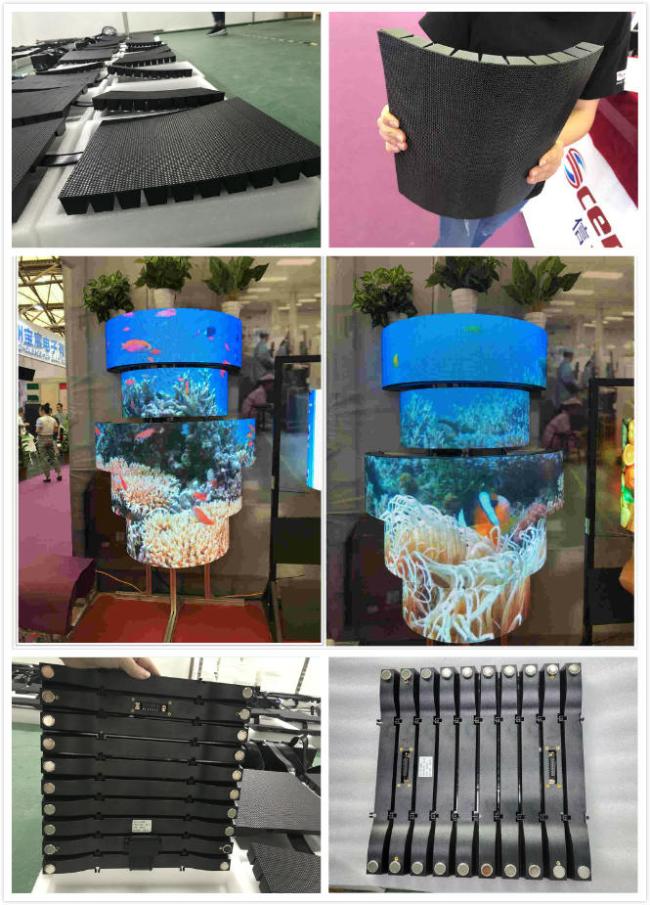

Pictures
