1.5ton/H Free Install Easy Operation Horizontal Steam Boiler for printing and dyeing
1.5ton/H Free Install Easy Operation Horizontal Steam Boiler for printing and dyeing
WNS type horizontal automatic steam boiler is equipped with industrial burners with good technical performance. It adopts advanced technologies such as automatic proportional regulation of combustion, automatic regulation of water supply, program start and stop, automatic operation, etc. It also has automatic protection functions such as high and low water level alarm, extremely low water level, ultra-high steam pressure and flameout.The boiler has the characteristics of compact structure, safe and reliable, simple operation, quick installation, less pollution, low noise and high efficiency.
This series boiler is three return fire tube steam boiler.It equipped with good performance burner and advanced techniques.The burning control,water feed,programs run,etc,is full automatic.This fantasy boiler is safe and reliable,and also has the advantage of compact structure,simple operation,easy installation,high efficiency,less pollution and noise,etc.

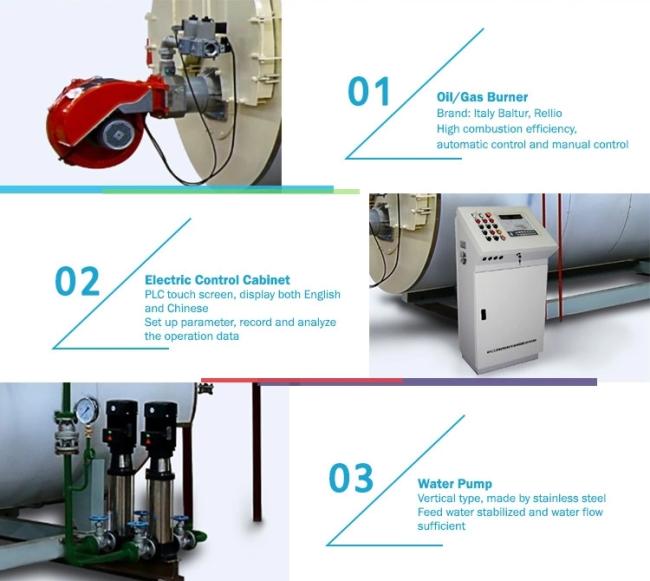

Detail Display
-
-
-
-
-
-
-
-
-
Quality Burner: Oil fired steam boiler adopting high quality low nitrogen split-type burner; preheat the air for burner, raise the furnace's temperature and increase combustion efficiency.
-

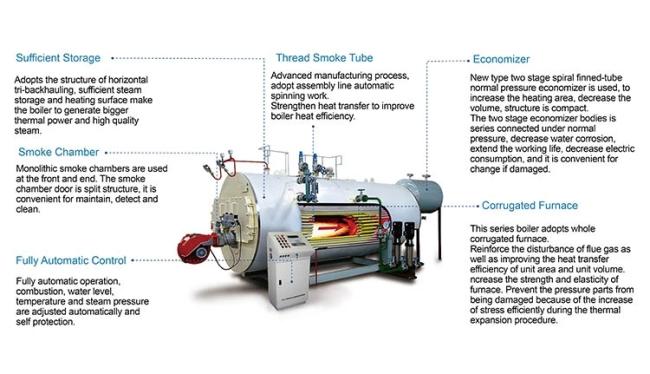

High Efficiency 95%: Wet-back technology replace traditional dry-back design, effectively increase boiler’s water heating surface, and protect the smoke-box from the over-temperature damage. Three passes structure, Large diameter corrugated furnace and corrugated fire tubes to increase boiler heating surface to better absorb the heat. Additional, it also equipped with condenser(finned tube type) to full using the massive latent heat in the exhaust gas; and the high temperature condensing water also can be fed into the boiler again.
-
PLC Automatic Control: WNS series oil fired steam boiler adopting advanced touch screen control cabinet and digital computer full automatic controller. The water feeding system controller can automatically regulate water feeding rate, make sure boiler's water stay on the standard water level. According to boiler's working pressure, burner controller can automatically regulate output power; the burner's output has one- two- three stages fire.
-
Safe: Oil fired steam boilers are produced strictly accordance with the relevant national standards, pneumatic hydraulic pressure automatic adjustment, automatic ignition, and water shortage or overpressure flame failure protection.
-
Long Life: Oil fired steam boiler adopt advanced technology of preheat expansion then welded which prevents corrode tube clearance and enhanced strength.also through hot commissioning before delivery, whether running or operation rate are all very stable.
-
Convenient Installation/ Maintenance: WNS series oil fired steam boiler gets compact structure and openable front/ back smoke boxes, man-hole, hand-hole, platform ladder. Above designs are convenient for installation, maintenance.
Technical Parameters
|
Item Model |
WNS0.5 |
WNS0.8 |
WNS1 |
WNS1.5 |
WNS2 |
WNS3 |
WNS4 |
WNS5 |
|
Rated capacity t/h |
0.5 |
0.8 |
1 |
1.5 |
2 |
3 |
4 |
5 |
|
Rated working |
0.7/1.0/1.25 |
1.0/1.25/1.6 |
||||||
|
Rated steam |
170/184/194 |
184/194/204 |
||||||
|
Feed water |
20 |
|||||||
|
Boiler heating |
13 |
25 |
30 |
35 |
53 |
77 |
107 |
127 |
|
Economizer heating |
10 |
10 |
12 |
12 |
12 |
15 |
22 |
30 |
|
Suitable fuel kind |
heavy oil/ light oil/ natural gas/ lpg/ city gas |
|||||||
|
Thermal efficiency % |
>90 |
>90 |
>90 |
>90 |
>90.2 |
>90.5 |
>91 |
>91.3 |
|
General power KW |
1.2 |
2.4 |
3.6 |
4.8 |
7 |
10 |
13 |
16 |
|
Weight of biggest part |
3 |
3.5 |
4 |
4.5 |
8 |
9 |
13 |
14.3 |
|
Size m |
3.2*1.8*1.8 |
3.4*2.0*2.0 |
3.6*2.0*2.0 |
3.8*2.0*2.0 |
4.8*2.5*2.4 |
5.3*2.5*2.5 |
5.8*2.8*2.8 |
6.3*2.9*2.8 |

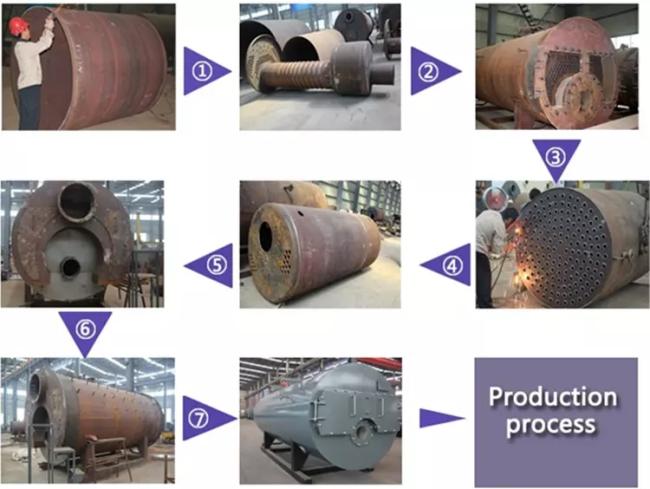

Production process
Production Line Quality Control:
1.Strict quality control system,From the material, welding, to finished boiler shipment, from project , establishment, drawing design, to final audit;
2. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
3. 100%X-ray inspection report (welding seam): to ensure the quality of the entire generator;
4. Hydraulic test report: ensure the standard working pressure and safety.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2:When the product can be delivered?
A: Commonly the lead time will be within 15days after receiving 30% deposit or L/C, subject to prior sales.
Q3:What's the advantage of your company?
A:We have exported our boiler and service to more than 50 countries./ we have specialize team work for you, you will get our feedback within 12 hours./ Germany and Italian advanced manufacturing technology.
After-sale service
1). Engineers available to service machinery overseas.
2). We can guarantee 2 years for the boiler host,and also warranty 2 years for boiler auxiliary.
3.If there is any problem in install and use process, fell free to contact use and we will get back to u in first time to solve the problem
4).If our reply is still no solution to boiler problems, we will send engineers on-site service.
Why choose our products?
We are a professional boilers factory.
1.Economically priced,exquisitely made. Experienced & responsible QC that you can rely on;
2.Strict quality control system. From the material, welding, to finished generator shipment, from project , establishment, drawing design, to final audit;
3. scientific advanced rational and economical Structure Design;
3.Adequate supply capacity, punctual delivery time;
4.Each generator system part is from first class brand all over the world or China;
5.Best after-sale service is provided;
6.We are the stable and long term supplier of many top companies in China.
