Laminated Glass Radiation Test Chamber EN ISO 12543-4 UV Irradiation Of Insulating Glass
Price:
Negotiation
MOQ:
One set
Delivery Time:
5-8 work days
Brand:
DAXIAN
Product Description

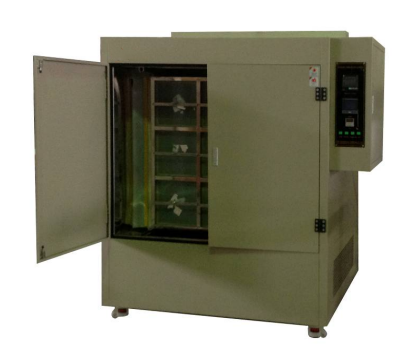

Laminated Glass Radiation Test Chamber EN ISO 12543-4
Model: DX8615A
Standards: EN ISO 12543-4-2011
Introduction:
This radiation test chamber is used to perform UV aging test of laminated glass
materials, complies to the EN ISO 12543-4 standards.
Insulating Glass UV irradiation Test Machine Technical specifications:
Dimensions working chamber size: 1100mm×1100mm×1000mm
Specimen size: 300×300mm, totally 9pcs
Temperature control range: sample surface 45℃±5℃
Light source: OSRAM Ultra-Vitalux1 300W UV lamp; lamp quantity: 16pcs
Total radiation intensity: Total radiation intensity on specimen surface 900W/m2±
100 W/m2
Distance from specimen to illuminant: >500mm
Test period: 2000h
Noise: ≤75db
Blower power: ≤25W×4
Compressor power: 2.5HP
Installed power: 9KW
Power supply: AC380V/50HZ, 3-phase 5-wire
Welcome to visit our factory for sightseeing!
| Supplier Company Name | Daxian Instrument Equipment CO.,Limited |
| Company Address | Changlian Industrial Building, 168 Zhenan West Road, Xiabian Community, Chang'an Town, Dongguan, Guang Dong, China |
| Contact Person | Sophia Su |
| Mobile Number | 86-13266221899 |
| Telephone Number | 86-0769-82759287 |
