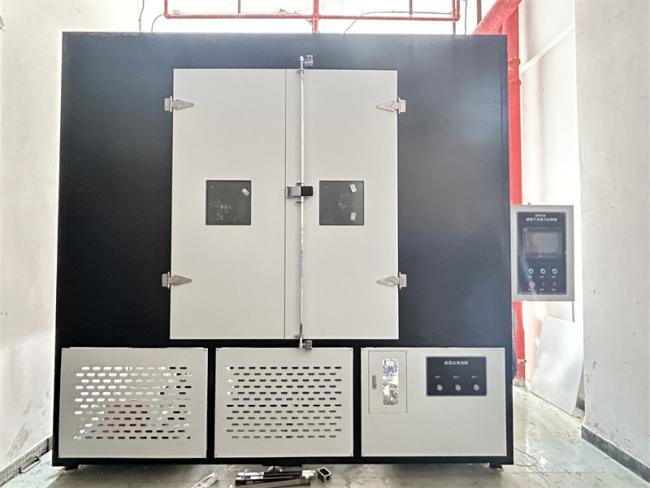

IEC62730-2024 5000h Insulator Test Ageing Chamber Multiple Stress Testing Equipment IEC62217-2012
Scope of application: The equipment is mainly used to simulate the comprehensive performance test of insulators under complex working conditions, and evaluate their durability and reliability by applying multi-stress coupling effects

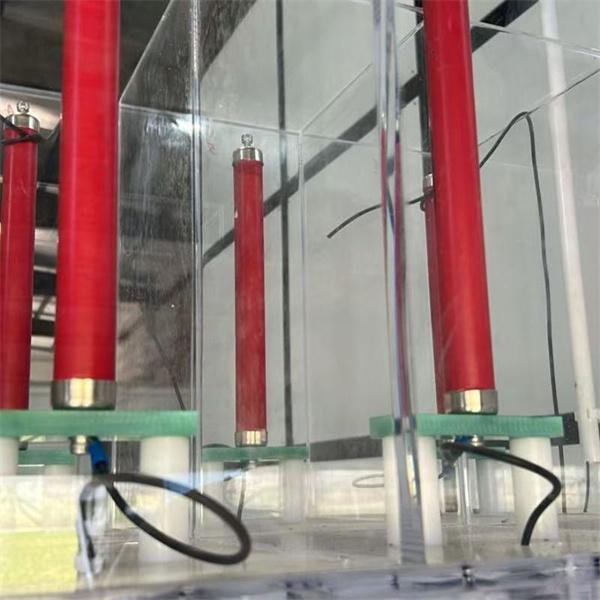

Test Conditions : 1.The cycle of stresses applied to the insulators and repeated for a period of 5 000 h. The cycle is designed so that the test specimens are also subjected to the effects of temperature variation and condensation . 2.The test specimens are arranged vert ically in the chambe. 3.There shall be a clearance of at least 400 mm between adjacent edges of the sheds of test specimens and between the test specimens and the roof, the walls and the floor. 4.The test specimens shall be cleaned with de-ionised water before starting the test. Up to three pairs of test specimens with comparable creepage distance can be tested simultaneously. 5.Weekly interruptions of the test for inspection purposes, each of these not exceeding 1 h are permissible. lnterruption periods shall not be counted in the test duration. Five longer interruptions up to 60 h each are allowed. An additional testing time of three times the duration of the interruption period shall be added. The final test report shall include all details of interruptions.
Dongguan Daxian Automation Equipment Co., Ltd., established in 2012, specializes in manufacturing testing equipment, including IEC62730-2024 standard insulator multi-stress testing machines. With 301-500 employees, the company serves 30% domestic and 20% Northern European markets. Its testing machines offer high accuracy, IP67 protection, and 5000h durability testing, meeting IEC 62730-2024 and IEC 62217-2012 standards.
