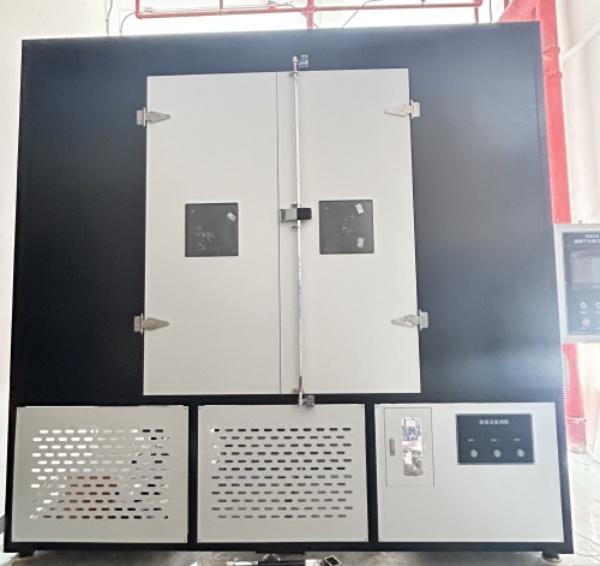

IEC62730-2024,IECIEC62217-2012 Polymeric Insulators 5000hrs Multiple Stress Test Machine

IEC62730-2024 standard :

• Accelerated Aging Test

• Multiple Stress Test Equipment

• Environmental Stress Chamber

• Temperature Humidity Cycling Chamber

• Electrical Stress Test System

• Multiple Stress Testing

IEC62730-2024 Tester:

1. Test sample: Two test insulators of the same design with a creepage distance between 500mm and 800mm,

2. Procedure: Conduct the test in a sealed, damp, and corrosion-resistant test chamber, with a volume not exceeding 20M3. Figure B1 is a schematic diagram of this test chamber

3. Separate observation holes for wipers and movable ultraviolet filters to observe the equipment in the experiment.

4. Test conditions: As shown in Figure B2, various stress cycles are applied to the insulator, which are repeated for about 5000 hours. During the equipment cycle test, the test sample should be subjected to temperature changes and condensation.

5. As shown in Figure B3, the test is installed vertically in the middle of the test, with a minimum distance of 400mm between the adjacent umbrella edges of the test specimen and the top, as well as between the test specimen and the wall and ground Before the experiment begins, the test sample should be cleaned with deionized water,

7. Up to three pairs of samples with similar creepage distances can be tested simultaneously

8. Voltage: The value obtained by dividing the creepage distance of the test sample (in mm) by 34.6 (equivalent to a creepage distance of 20mm/KV, calculated based on the phase to phase voltage).

Packaging & Shipping:

FAQ:

A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.Q:Are you factory or trading company?

Q:What kind of certificate you have?

A:CE Certification.

Q:What is the lead time of the product?

A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?

A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?

A:1 year warranty,The engineer can teach the machine on the spot.
