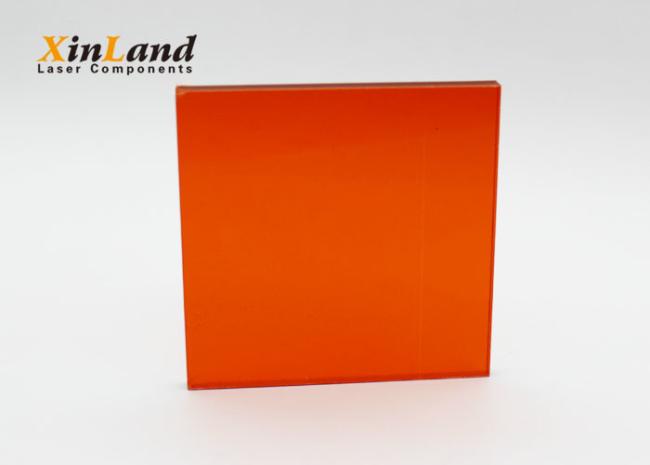

190-540nm And 800-1100nm Orange Acrylic Protection Sheet OD 4+ VLT 25%
190-540nm & 800-1100nm Orange Acrylic Protection Sheet OD4+ VLT 25% Used in UV Infrared Protection
Product Details:
- Impact Resistant Acrylic is approximately 8 to 10 times more resistant to impact than ordinary plate glass.
- Easy Fabrication Acrylic can be saw cut, drilled, routed, machined, solvent cemented, polished and strip bent using conventional acrylic sheet fabrication techniques.
- Offers better weather and UV resistance.
- Can custom sizes and bulk quantities.
Technical details:
Visible light Transmittance:25%
Optical Density(OD): 4+
Thickness:5mm
Specifications:
|
Visible light Transmittance |
25% |
|
Protection Wavelength |
190-540nm & 800-1100nm |
|
Thickness |
5mm |
|
Dimension |
1280*1000 (Customers' size is accepted) |
|
Material |
Acrylic ,PMMA |
| Optical Density | OD4+ |
- Acrylic may be thermoformed. Because it is a cell cast sheet, it is not subject to the excessive shrinkage that is encountered in extruded or continuously manufactured sheets.
- Acrylic laser windows are often darker, with lower VLT than glass laser windows. Acrylic also usually has lower VLT ratings than glass, though it still offers ample protection from lasers.
Laser Safety Window Catalog:
| Model Number | Proection Wavelength | Optical Density | Blocking Rate | Size | Thickness |
| XL1PW4D3T | 190-550nm | 4+ | 15% | 1280*1000mm | 3mm |
| XL1PW5D5T | 5+ | 15% | 1280*1000mm | 5mm | |
| XL2PW4D5T | 580-750nm | 5+ | 40% | 1280*1000mm | 5mm |
| XL3PW4D3T | 800-1100nm | 4+ | 60% | 1280*1000mm | 3mm |
| XL3PW4D5T | 4+ | 73% | 1280*1000mm | 5mm | |
| XL3PW6D5T | 800-1100nm | 6+ | 60% | 1280*1000mm | 5mm |
| XL3PW8D5T | 800-1100nm | 8+ | 42% | 1280*1000mm | 5mm |
| XL3PW4GD5T | 190-540nm&800-1100nm | 4+ | 25% | 1280*1000mm | 5mm |
| XL4PW4D5T | 190-450nm&800-1700nm | 4+ | 35% | 1280*1000mm | 5mm |
| XL5PW4D5T | 190-420nm&860-1300nm | 4+ | 28% | 1280*1000mm | 5mm |
| XL6PW4D3T | 1064nm&10600nm | 4+ | 40% | 1200*1000mm | 3.3mm |
| XL6PW4D5T | 1064nm&10600nm | 6+ | 30% | 1200*1000mm | 5mm |
| XL7PW4D5T | 10600nm | 6+ | 90% | 1200*1000mm | 5mm |
Payment Method: PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and .
Shipping Method: DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
Packaging & Delivery:
Packaging Details: Carton
Delivery Time: 8-13 days
Lead Time: 8-13 days
Notes:
1. The window's maximum size is 1280*1000*5mm,we can cut that for customer size,free cutting service
2. The laser safety window can extensively apply in laser industry manufacturing, range finding,aligning,medical treatment, etc.
