3 Ton Side Shift Forklift , Electric Lifts For Warehouse Energy Saving Hydraulic System
Side Shift Nissan Engine Options 3 Ton Diesel Forklift
3T Forklift Features

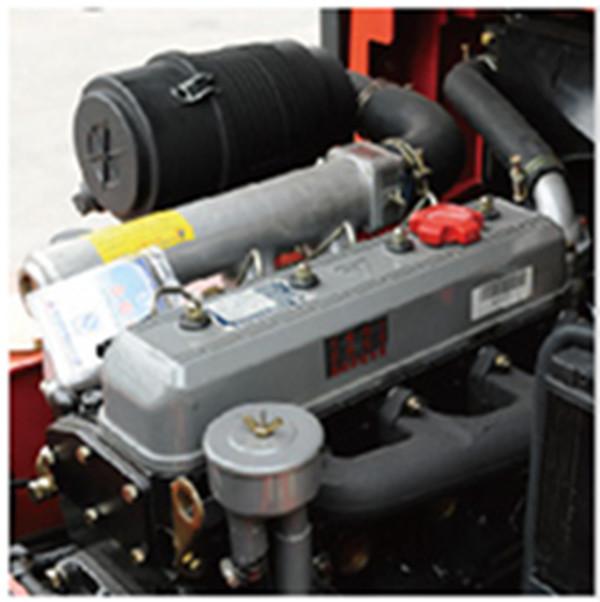

Optional Engine
Xichai 490 CE certificated engine, 37kw/ 50hp
Xinchai 490 Euro III engine, 36.8kw/ 50hp
Xinchai 498 Euro III engine, 36.8kw/ 50hp
Power system
Equipped with Chinese powerful and reliable engines with excellent enviromental performance, Orginal imported Isuzu, Mitsubishi and Cummins engines are optional.
Heavy-duty driving axle
Install heavy-duty axle to ensure safety work at bad working conditions.
Hydraulic system
Adopt advanced load sense technoloy which offers flow for steering system to save energy, protect environment,
and lower the system heat.
XGMA News 3 Ton Forklift Specification:
| Character | 1.1 | Manufacturer | XGMA | |
| 1.2 | model | CPC30 | ||
| 1.3 | Product name | XG530-D5 | ||
| 1.4 | Power size | Diesel | ||
| 1.5 | Rated Capacity | kg | 3000 | |
| Dimension | 2.1 | load center distance | mm | 500 |
| 2.2 | Lifting height | mm | 3000 | |
| 2.3 | Free lifting height | mm | 145 | |
| 2.4 | Mast tilt | α/β | 612 | |
| 2.5 | Overall Length | mm | 3820 | |
| 2.6 | Overall Width | mm | 1220 | |
| 2.7 | Mast without lifting height | mm | 2100 | |
| 2.8 | Right Angle stacking min. channel width | mm | 4075 | |
| 2.9 | Overhead height | mm | 2150 | |
| 2.11 | Fork(L*W*H) | mm | 1070*125*45 | |
| 2.12 | Front overhang/Rear overhang | mm | 475/515 | |
| 2.13 | Wheel distance | mm | 1760 | |
| 2.14 | Min. Turning radium | mm | 2400 | |
| Specification | 3.1 | Min.ground clearance | mm | 140 |
| 3.2 | Max.driving speed(Empty load) | km/h | 20 | |
| 3.3 | Lifting speed(Full load) | mm/s | 450 | |
| 3.4 | Max.traction | KN | 15 | |
| 3.5 | Gradeability | ° | 20 | |
| Tires | 4.1 | Overall Weight | kg | 4270 |
| 4.2 | Front tire size | 28*9-15-14PR | ||
| 4.3 | Rear tire size | 6.50-10-10PR | ||
| 4.4 | wheel distance(Front/Rear) | mm | 1000/980 | |
| Driving,transmission gear device | 5.1 | Engine Model | C490BPG | |
| 5.2 | Eninge rated power/rotate speed | kw/r.p.m | 40/2650 | |
| 5.3 | Max.torque/rotate speed | N.w/r.p.m | 160/1800-2000 | |
| 5.4 | Gears (Front/Rear) | 22 | ||
| 5.5 | Battery(Valtage/capacity) | V/Ah | 12/80 | |
| 5.6 | Fuel box capacity | L | 70 | |
| 5.7 | Hydraulic oil box capacity | L | 70 |
FAQ
1.What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4.What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5.Delivery date:
If clients need normal products, we will deliver the products within 15days. If clients need customerized products, the delivery date depend on the requirements.
