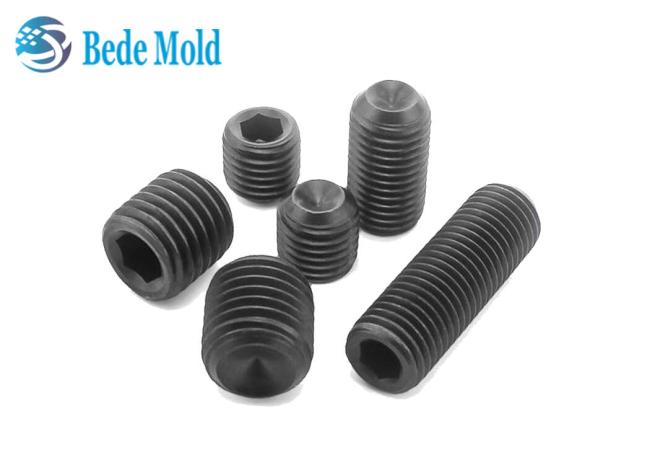

Black Color Cup Point Set Screws Din 916 Metric Fine Threaded Alloy Steel Materials
Black Color Cup Point Set Screws Din 916 Metric Fine Threaded Alloy Steel Materials
Description
The relative position of the components is fixed, especially when used for axial positioning, and the screw head is not allowed to be exposed on the surface. It needs to be used with an Allen key.
Material of cup point set screw
Stainless Steel 304, Alloy steel etc.
Quick Details of the cup point set screw
| Size | M3-M20 | Thread type | Metric Fine |
| Materials | Alloy steel 45H | Type | Cup point |
| customized | welcome | Packing | 1000pcs per Box |
Standard Size of the cup point set screw
For the M3~M20 Flat point grub screws, ,we have the following standard sizes in stock, generally can be shipped within 2 working days after payment, if customized, delivery time is generally 15-20 days. If there is an urgent need, please communicate with the seller in advance.
| D | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | |
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | |
| S | min | 1.52 | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.25 |
| t | min | 2 | 2.5 | 3 | 3.5 | 5 | 6 | 8 | 10 | 12 |
| L | 2~60 mm | |||||||||

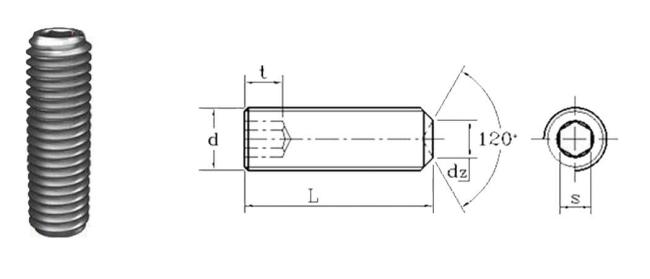

For the customized size, Tell us the values as following picture, everything else will be done by us for you.
