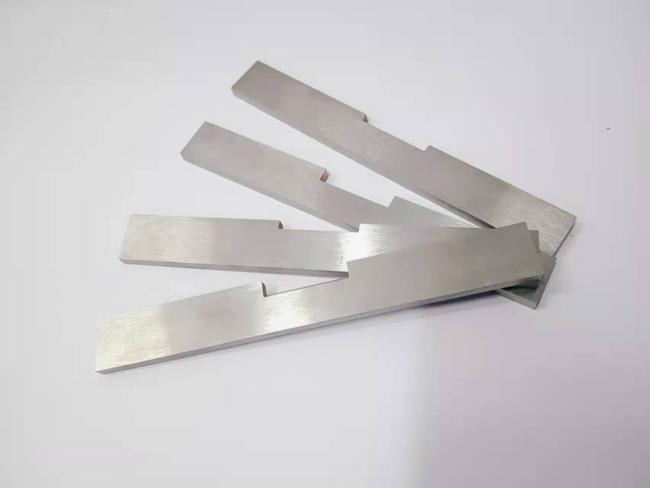

High Bending Strength HRA90.5/91 Tungsten Carbide Strips，strips profiles for cutting and profiling
On the basis of ensuring high bending strength, the wear resistance of the alloy is improved, the cutting edge is dense
| Type | W(mm) | T(mm) | L(mm) | α(°) | D(mm) |
tol of Width(mm) |
| SC3*6*320 | 6 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*7*320 | 7 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*8*320 | 8 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*9*320 | 9 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*9.5*320 | 9.5 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*10*320 | 10 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*11*320 | 11 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*12*320 | 12 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*13*320 | 13 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*14*320 | 14 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*15*320 | 15 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*16*320 | 16 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*17*320 | 17 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*18*320 | 18 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*19*320 | 19 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*20*320 | 20 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*22*320 | 22 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*25*320 | 25 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*28*320 | 28 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*30*320 | 30 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*32*320 | 32 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*33*320 | 33 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*34*320 | 34 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| SC3*35*320 | 35 | 2.8-5.5 | 100~320 | 35 | 0.1/1.5~2 | 0~0.1/-0.1~0 |
| STYE | W(mm) |
T(mm) (Tol 0+0.1) |
L(mm) | α(°) | D(mm) |
| SD3*6*320-35° | 6 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*7*320-35° | 7 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*8*320-35° | 8 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*9*320-35° | 9 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*10*320-35° | 10 | 2.5~5 | 1300~320 | 35 | 1.5~2.0 |
| SD3*11*320-35° | 11 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*12*320-35° | 12 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*13*320-35° | 13 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*14*320-35° | 14 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*15*320-35° | 15 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*16*320-35° | 16 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*17*320-35° | 17 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*18*320-35° | 18 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*19*320-35° | 19 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*20*320-35° | 20 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*22*320-35° | 22 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*25*320-35° | 25 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*28*320-35° | 28 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
| SD3*30*320-35° | 30 | 2.5~5 | 100~320 | 35 | 1.5~2.0 |
Zhuzhou Gold Sword Cemented Carbide Co., Ltd. Located In Zhuzhou City, Hunan Province, Which Is The Largest Cemented Carbide Production And Sales Base In China. Our Main Products Are Carbide Strips, Carbide STB Bars, Carbide Sand Breaking Strips, Carbide ASA Brazing Tips, Carbide Cold Heading Dies And Carbide Rods. Our Professional And Technical Personnel All Have Above 15 Years Of Cemented Carbide Production Experience, The Rich Experience Can Provide Our Customers Of High-Quality Products And Thoughtful Technical Support, And Continuous Improvement To Meet Customer Needs.
The "stability" and "consistency" of products are the focus of our quality control.
First of all, we have advanced equipment, such as spray tower, Solid furnace , isostatic static pressure punching machine.
We select raw material which is exclusive manufacturer.We make sure we have enough stock,all sizes of strips and types are complete,To ensure the capacity have a monthly output of 5 tons.The company uses advanced testing equipment to continuously formulate and improve the quality control system.
Strictly train a quality control technician with outstanding skills,
According to the raw material monitoring, process production and final inspection,
The whole process is strictly monitored in accordance with international quality control system standards;
All-round inspection of products from chemical composition, organization structure, physical properties, appearance size, etc.
Adopt dedicated full-time responsibility system to achieve professional services,when we find problems timely feedback, prompt delivery and solve processing problems quickly.
We have been rooted in the cemented carbide industry and have served foreign trade companies in the Zhuzhou industry for many years. Our customers are mainly metal processing, woodworking and textile tools, petroleum machinery, etc., and are well received by customers.
Based on the damands of customers , for different industries, different materials and different working conditions, provide customers with accurate service and solutions of products, and provide high cost-effective products, to keep the promises of our customers, and Timely provide the professional technical services.
