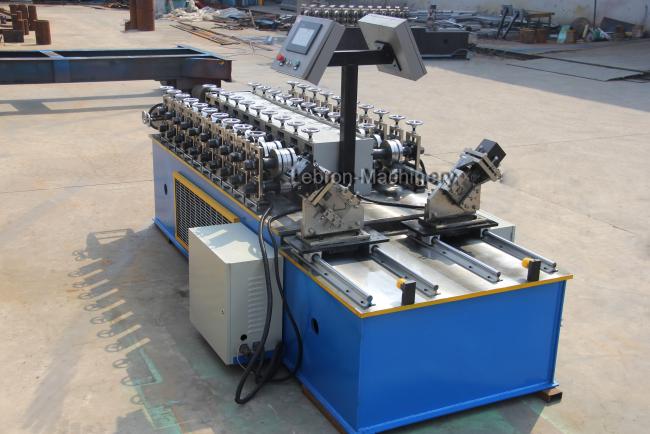

Light Gauge Steel Stud Machine 7.5KW 380V / 50Hz High Efficiency Easy Maintenance
7.5Kw stud and track roll forming machine light gauge steel stud and track
1. Description of Stud and Track Roll Forming Machine
Lebron-Machinery Stud & Track Roll Forming Machine is designed for manufacturing high quality studs and tracks of various sizes. This machine can produce two different sizes of studs and tracks at the same time.
In our service, we support the equipment and profiles that customers really need and including our most sincere recommends.
This Stud & Track Roll Forming Machine is driven by chain in hydraulic system. Chain Drive System can save the power compare with other system. That also means that customers do not need to pay the extra power fee during production.
This machine can produce two different sizes of studs and tracks at the same time. The detailed sizes are as follows:
| No. | Item | Description |
| 1 | Material Thickness | 20 Gauge ~ 30 Gauge |
| 2 | Web size | 41mm ~ 152mm |
| 3 | Flange/Leg height (Stud) | 31mm ~ 64mm |
| 4 | Flange/Leg height (Track) | 31mm ~ 64mm |
| 5 | Lip Dimension | 6.35mm ~ 12.7mm |
|
Smaller and larger sizes can be added upon request |
||
| Cut-off with inserts for different sizes and profiles | ||
2. Technical Parameters of Stud and Track Roll Forming Machine
| No. | Item | Description |
| 1 | Machine Size | About 3.5m*1.2m*1.0m |
| 2 | Main Power | 7.5Kw |
| 3 | Voltage | 380V/50Hz/3Ph (can custom) |
| 4 | Hydraulic Power | 4 Kw |
| 5 | Roller Station | 12 Stations |
| 6 | Forming Speed | 20~25m/min |
| 7 | Control System | PLC control system |

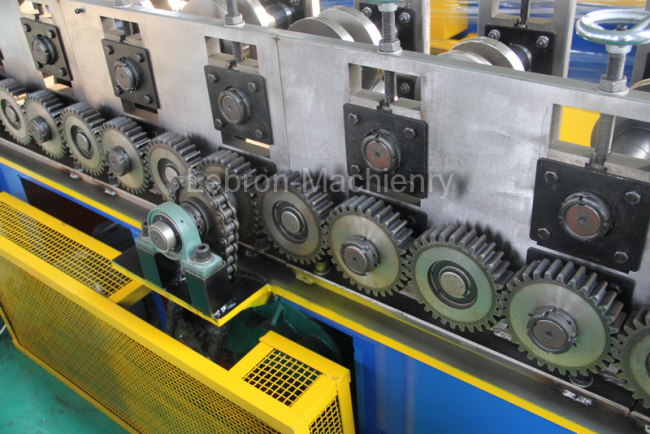

| 8 | Drive Model | Gear Chain |
3. Main Components of Stud and Track Roll Forming Machine
| No. | Item | Quantity |
| 1 | Uncoiler | 2 Sets |
| 2 | Main Roll Forming | 1 Set |

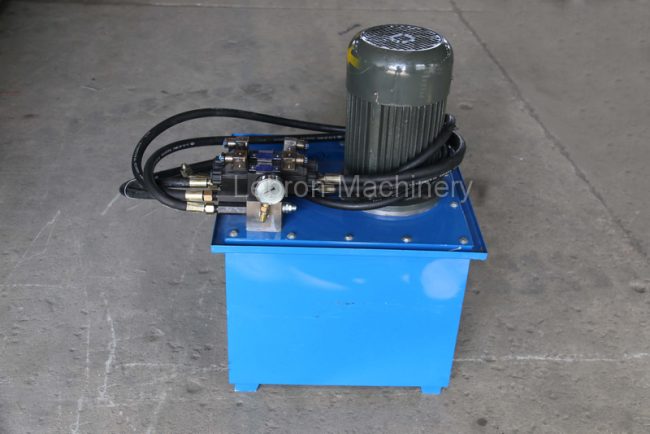

| 3 | Hydraulic Station | 1 Set |

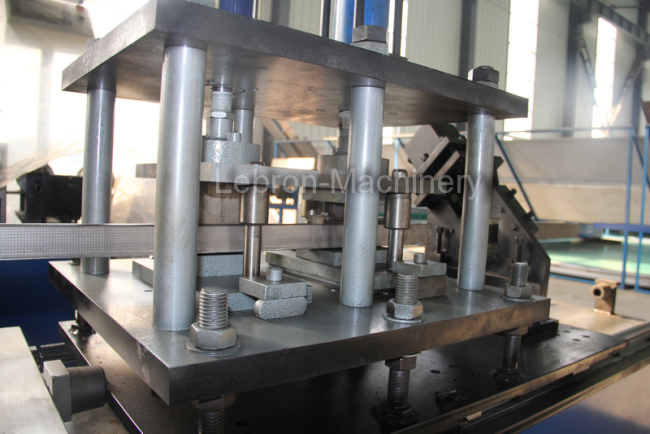

| 4 | Punch Device | 1 Set |
| 5 | Hydraulic Cutting | 1 Set |
| 6 | Ran-out Table | 2 Sets |
| 7 | PLC Control System | 1 Set |
4. Service
1). Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video are provided to show how to install and operate.
2). After-sale Service:
We provide 12-hour online service for our customers. Phone: +86 15821208506
We can send the technician to your country to fix the machine if you need. The buyer needs to pay for all the cost, including visa, round trip tickets, accommodation, the salary of USD 100 per day.
