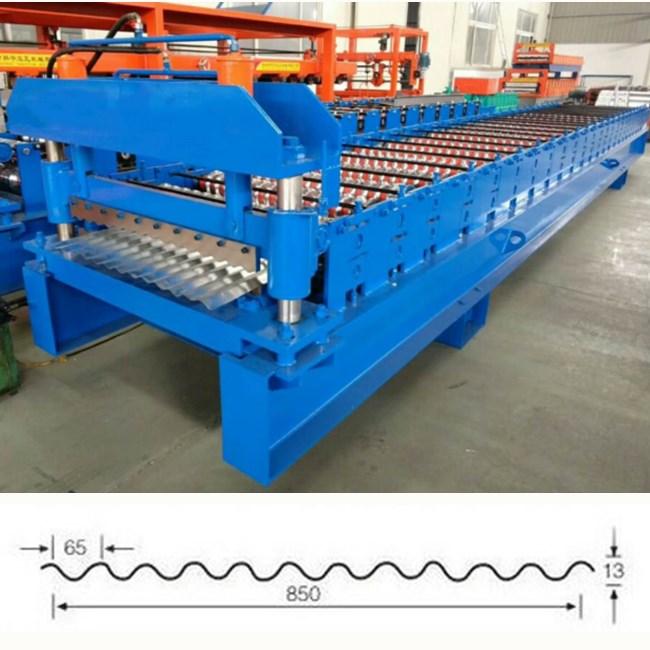

Hydraulic Cut Corrugated Sheet Roll Forming Machine , Sheet Metal Corrugating Machine 8-12m/min
Full Automatic 8--12m/Min Speed Corrugated Roof Sheet Roll Forming Machine Hydraulic Cut
1. Parameter of the machine
| 1 | Name of commodity & specification | 850 Corrugated roofing sheet making machine |
| 2 | Main motor power | 3kw |
| 3 | Hydraulic motor power | 3kw |
| 4 | Hydraulic Pressure | 10-12MPa |
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) |
| 6 | Control System | PLC |
| 7 | Main Frame | 300mm H-Beam |
| 8 | Side panel Thickness | 14mm |
| 9 | Chain Size | 20mm |
| 10 | Feeding Material | color steel coils |
| 11 | Feeding Thickness | 0.25-0.8 mm |
| 12 | Feeding Width | 1000mm |
| 13 | Effective width | 850mm |
| 14 | Productivity | 8-12m/min |
| 15 | Roller Station | 9 |
| 16 | Roller Diameter | 70mm |
| 17 | Roller material | 45# steel |
| 18 | Cutter material | Cr12 |
| 19 | Cr-Plating Size | 0.05mm |
| 20 | Overall Size | 5500×1300×1100mm |
.
2. Advantage:
- This EU type of light gauge steel roll forming machine line include 3 tons of manual decoiler, roll forming host, PLC control system, hydraulic cutting system and output table
- The manual decoiler is free for each machine, it can hold 3 tons of strips, and normally the space between manual decoiler and the machine is 3 meters.
- Feeding table has 1 row of roller to make the strip flat, and the roll forming host can produce the light keels as per customer's request.
3. Main components of corrugated roof roll forming machine
| Item | Model/name | Qty. | Technical details |
|
1.Decoiling system |
Hydraulic decoiler |
1 set |
Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop. |
|
2.Forming machine |
Material Guiding System | 1 set | For feeding in a right position no Deviation. |
| Precutting Device | 1 set | Prevent the profile being unbeautiful because of the rough material. | |
| Main Roll Forming Machine | 1 set | About 22 steps, motor driving and chain transmission. Wall plate structure. | |
| 3.Cutting system | Hydraulic Cutting Device | Precutting and postcutting both. | |
| 4.Hydraulic system | Hydraulic Station | 1 set | Providing the power of cutting. |
|
5.Control system |
PLC Control System |
1 set |
PLC control system, encoder positioning and cut-to-length automatically, touch screen operating. |
| 6.Racking system | Exit rack | 3 PC | no power. |
4. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
5. Our Service
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 22 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 3 years maintenance and whole life technical support

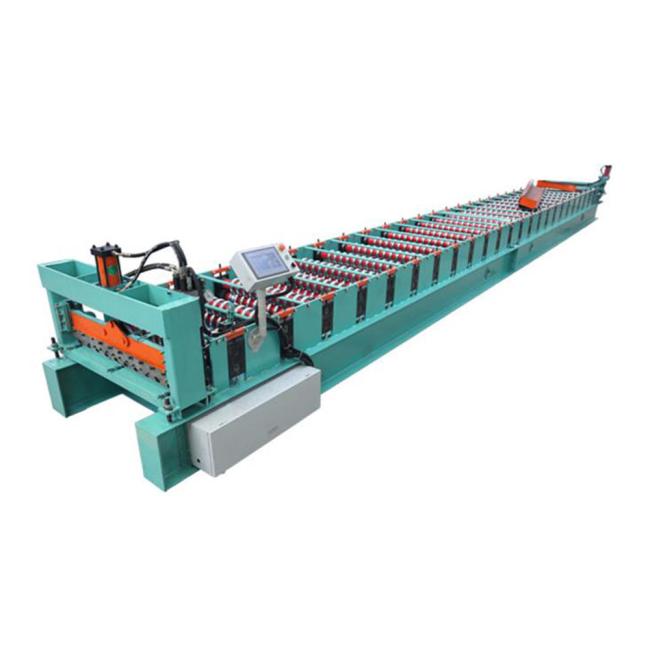

6. Picture
