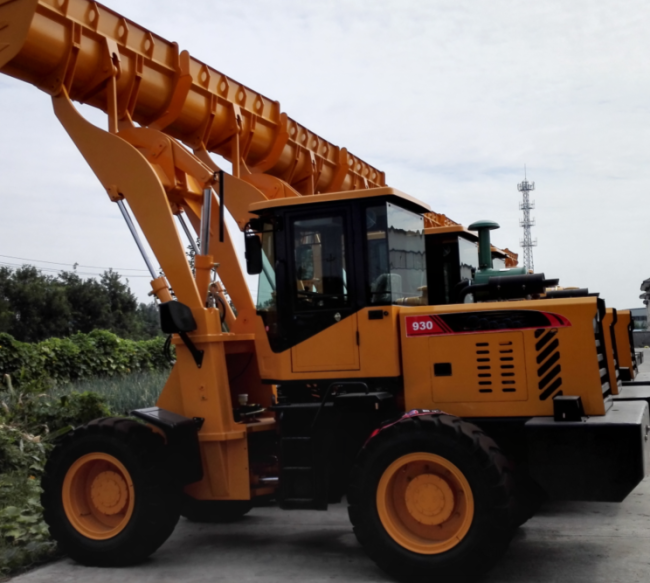

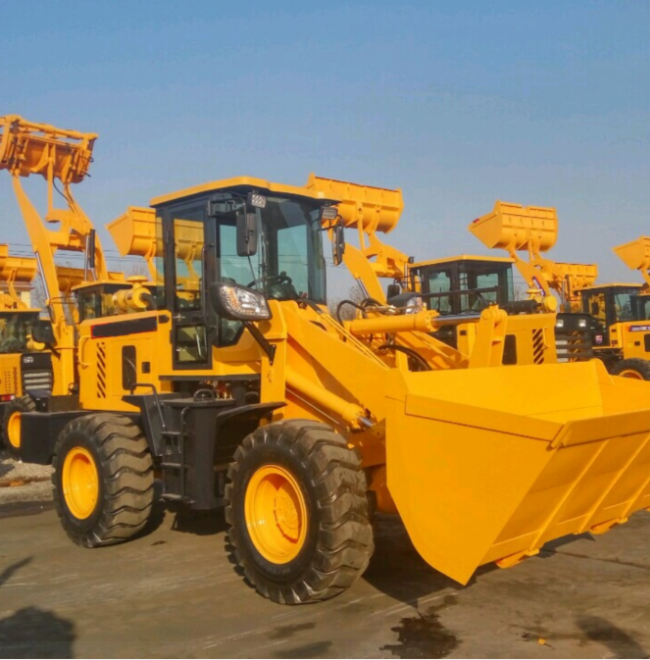

930 3 Ton Electric Control Mini Wheel Loader Machine / Hydraulic Front Wheel Loader
930 3 Ton Electric Control Mini Wheel Loader,Hydraulic Front Wheel Loader
1. The best components and parts in the field.
2. The transmission shaft is over the lower hinge joint that it can be effectively protected.
3. The parts of the frame, swing arm, bucket and hydraulic fuel tank which bear relatively strong force have been optimized and strengthen to cope with various working conditions.
4. The dualpumpconverging technology is less energy consuming; the hydraulic sensing with the priority of load serves for flexible operation.
5.The long wheel base and high stability contribute to high stability during the operation of the complete machine.
6.The hinge joint of the front and back frames is long in span and strong in rigidity.
7.Glass side doors of the cab contribute to a wide view.
8.Overhead hydraulic fuel tank can effectively prevent the cavitation caused by the suction of the pump, and thus extends the longevity of the hydraulic system.
| System | Items | 930 |
| Performance | Rated Load( kg) | 2600 |
| Total operating weight( kg) | 6500 | |
| Rated Bucket Capacity( m3) | 1.5 | |
| Dumping Height(mm) | 3100 | |
| Overall Dimemsions(mm) | 6500*2300*2800 | |
| Engine | Engine Model | YUNNEI4108Turbo |
| Rated Power(kw) | 92 | |
| Type | In-line,Water-cooled,Four-stroke,Direct injection, four- cylinder | |
| Transmission | Gear box | countershaft powershift |
| Torque converter | YJ280 | |
| Gear Shift | 2F2R | |
| Model of Axle | Hub Reduction Axle | |
| Brake system | Service Brake | Hydraulic,Disk Brake on 4 wheels |
| Parking Brake | manual Flexible Shaft Control Disc Brake | |
| Tyre | Type Specification | 16/70-24 |
| Front Tyre Pressure(Mpa) | 0.3 Mpa | |
| Rear Tyre Pressure(Mpa) | 0.28 Mpa |
