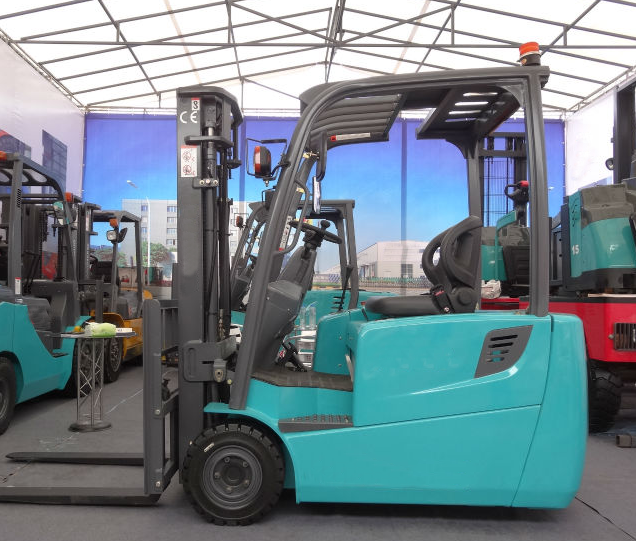

Fire Extinguisher Battery 3 Wheel 1.6T Electric Forklift Truck

Price Negotiable

Price: Negotiation

MOQ: 1-10 pcs

Delivery Time: 15 days

Brand: Bilon

Product Description

Wheel 1.6T Rated Capacity Electric Forklift Truck with Alarm / Siren / Fire Extinguisher Battery

1.Comfortable driving space

2.Front & rear adjustable steering wheel and seat

3.Humanized hydraulic opperation handle and emergency power

4,Super low and non=slip step

5.Suspenson steering axle

6.Storage space

7.External power plug assembly

8.High strength head guard

9.Reliable accelerator

10.Alarm light and rear working lamp

1	Rated Capacity		kg	1600
2	Load Centre		mm	500
3	Lift Height		mm	3000
4	Fork Size (L×W×T )		mm	920×100×35
5	Mast Tilt Angle (F/R)		Deg	5°/10°
6	Turning Radius (outside)		mm	1510
7	Min. Intersecting aisle		mm	1889
8	Front Overhang (Wheel center to fork face)		mm	400
9	Tread (front/rear)		mm	910/185
10	Ground Clearance(Bottom of mast)		mm	80
11	Wheelbase		mm	1250
12	Fork spread(min/max)		mm	200/950
13	Max.Gradeability (No load/Full load)		%	15
14	Service weight		kg	3700
15	Overall Dimension	Length to face of fork(Without fork)	mm	1900
16		Overall Width	mm	1090
17		Mast Lowered Height	mm	1965
18		Mast Extended Height(With backrest)	mm	3945
19		Overhead Guard Height	mm	2100
20	Speed	Travel (No load)	km/h	12.5
21	Speed	Lifting(Full load)	mm/s	300
22	Tire	Front	mm	18×7-8*
23	Tire	Rear	mm	15×4.5-8*
24	Motor	Driven Motor	kw	24/26.5
25	Motor	Lift Motor	kw	11/15
26	Battery		V/Ah	48/500
27	Controller			ZAPI/SME, AC
28	Operating Pressure for Attachment		Mpa	14.5
