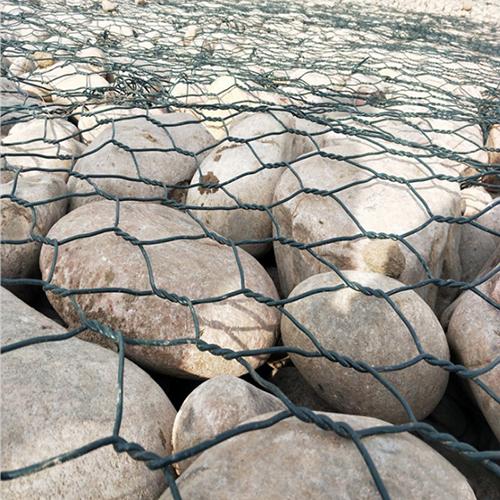

Hexagonal weave gabion basket
1/ Brief introduction of gabion box

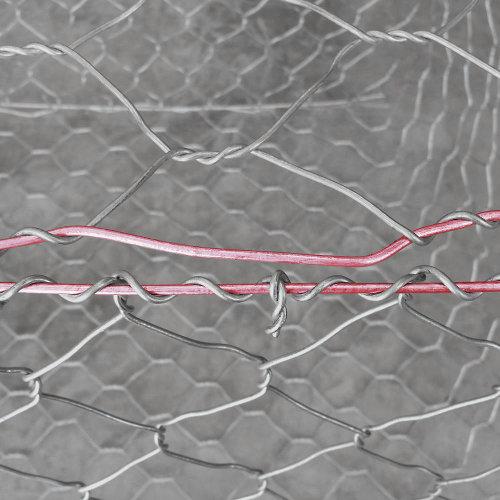

The gabion box is also named heavy hexagonal net, twisted net, gabion net, triple twisted gabion net, double twisted gabion mesh, which is a cage made of metal hexagonal net, whose wire diameter is matched with the size of the hexagonal net. If it is zinc coated hexagonal, then wire diameter is 2.0mm to 4.0mm, if it is PVC coated hexagonal wire, then PVC wire diameter is 3.0mm to 4.5mm. The selvedge wire is thicker than the mesh wire.
2/ High quality raw materials

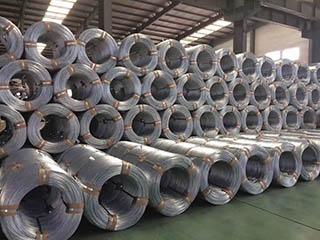

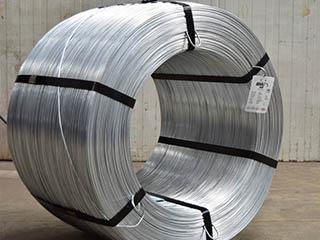

Galvanized wire
Galfan Coating ( Zn-5% AI-mixed alloy coating, Zn-10% AI-mixed alloy coating)
PE coated galvanized (Galfan) wire

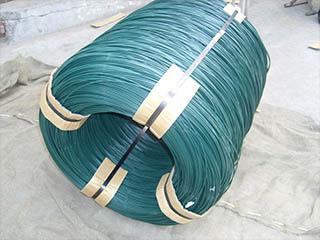

PVC coated galvanized (Galfan) wire
3/ Gabion box Specifications
| Gabion Baskets Specifications | |||
| Mesh Opening (mm) |
Wire Diameter(Metal Wire) (mm) |
Wire Diameter(PVC Coated) Inner/Outside(mm) |
Strands |
| 60*80 | 2.0-2.8 | 2.0/3.0-2.5/3.5 | 3 |
| 80*100 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 80*120 | 2.0-3.2 | 2.0/3.0-2.8/3.8 | 3 |
| 100*120 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 100*150 | 2.0-3.4 | 2.0/3.0-2.8/3.8 | 3 |
| 120*150 | 2.0-4.0 | 2.0/3.0-3.0/4.0 | 3 |

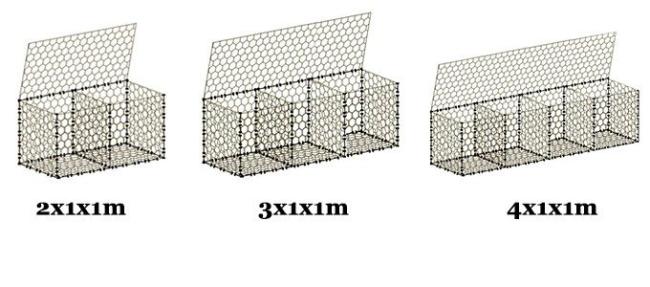

| Size | Notes | Tolerance | |||
| Length(m) | Width(m) | Height(m) | Cell Number | Volume(m³) | ±3% |
| 2.00 | 1.00 | 0.30 | 1 | 0.60 | |
| 3.00 | 1.00 | 0.30 | 2 | 0.90 | |
| 4.00 | 1.00 | 0.30 | 3 | 1.20 | ±5% |
| 2.00 | 1.00 | 0.50 | 1 | 1.00 | |
| 3.00 | 1.00 | 0.50 | 2 | 1.50 | |
| 4.00 | 1.00 | 0.50 | 3 | 2.00 | |
| 1.00 | 1.00 | 1.00 | 0 | 1.00 | |
| 1.50 | 1.00 | 1.00 | 0 | 1.50 | |
| 2.00 | 1.00 | 1.00 | 1 | 2.00 | |
| 3.00 | 1.00 | 1.00 | 2 | 3.00 | |
| 4.00 | 1.00 | 1.00 | 3 | 4.00 | |
4/ Our Standards & Certificates
All OUR PRODUCTS OUR COVERED BY ISO 9001:2008 WIRE ROADS AND GABIONS ARE PRODUCED ACCORDING TO SPECIFICATIONS BELOW:
BS1052/80 & BS 443/82
ASTM A 975-97
- EN10218-2(DIMENSIONS AND WIRE TOLERANCE)
- EN10223-3(HEXAGONAL STEEL WIRE)
- EN10244-2(ZINC COATING)

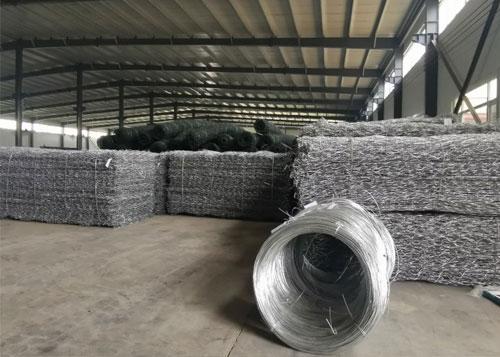

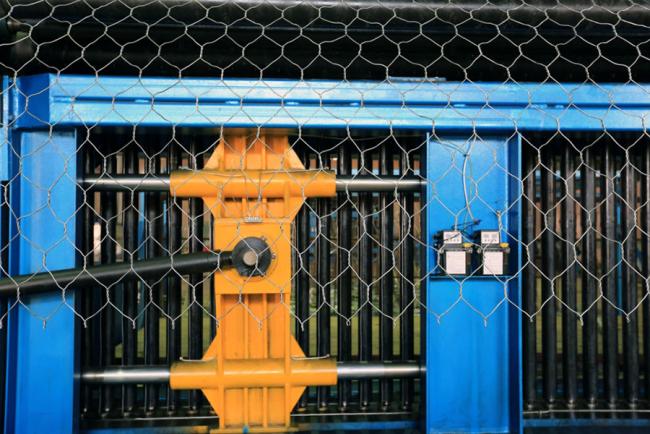

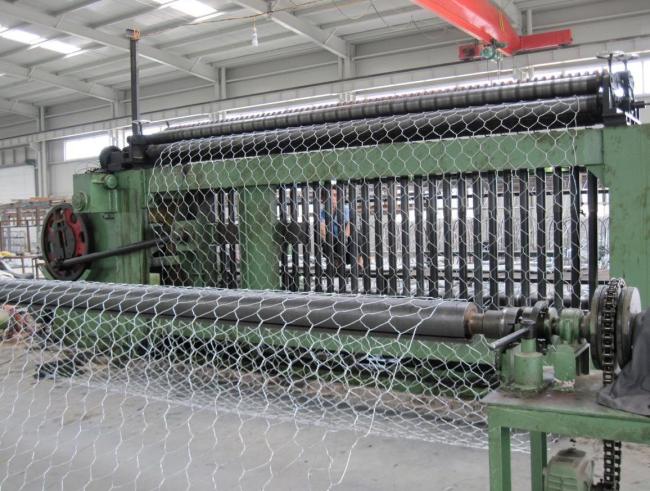

High quality is what we guarantee - for each order we will provide test report and test certificates.We use heavy galvanized wire or galfan wire and PVC coated as material and 25 sets advanced weaving machine to make sure all our products are flat surface, refined aperture, strong structure and corrosion-resistance to protect the dam and rivebank etc.
5/ Our Types of Gabion

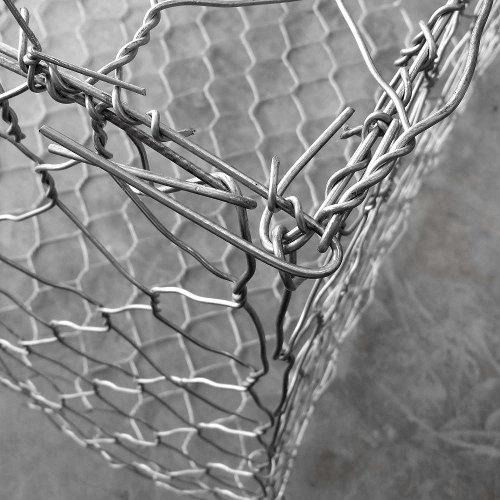

Galvanized gabion baskets
The galvanized gabion baskets is made of high-quality low-carbon steel wire , with tensile strength of steel wire more than 380N/mm2, wire diameter up to 2.0mm~4.0mm.
The surface is protected by hot dipped galvanized zinc layer. The galvanization amount can be customized, our heavy galvanized zinc amount can reach 240-300g/m2.

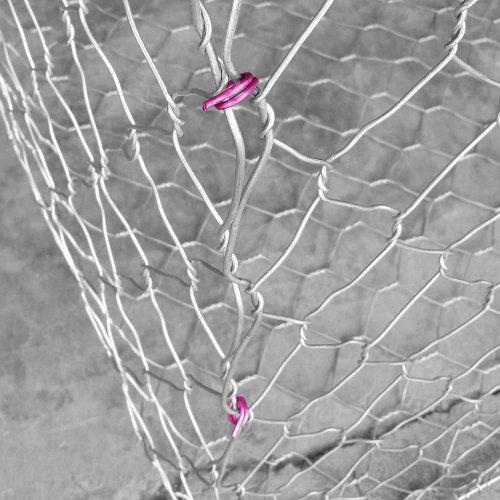

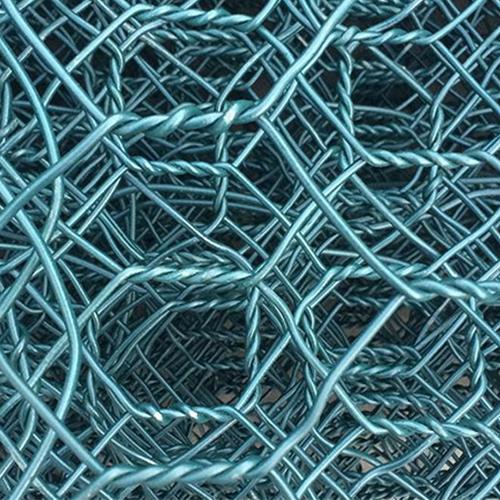

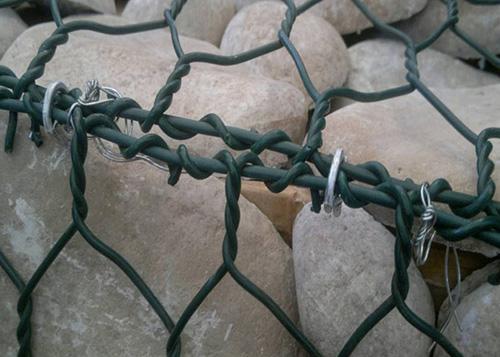

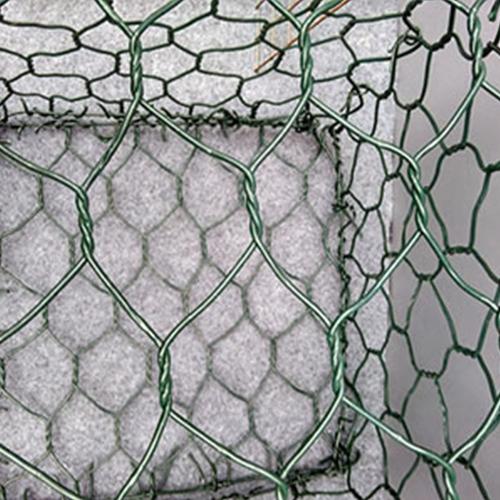

PVC Coated Gabion baskets
The plastic pvc coated gabion basket is coated with a PVC protective layer on the surface of the galvanized iron wire. This layer of PVC protective layer will greatly increase the service life of the net. With different PVC colors, it can naturally compatible with the surrounding environment.

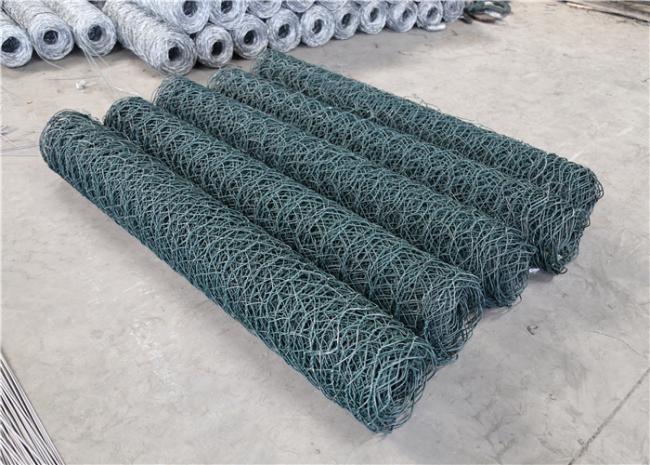

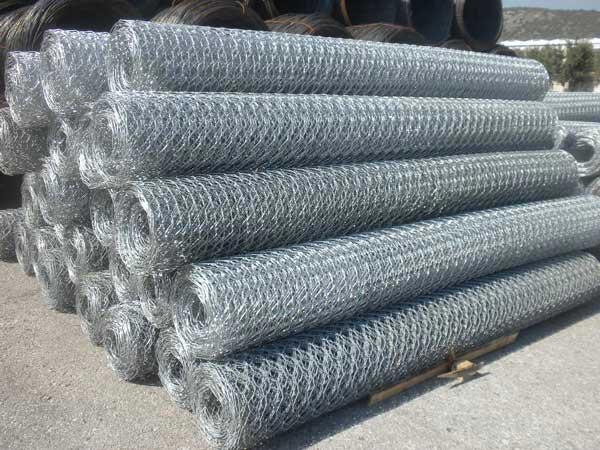

Gabion Roll
The gabion roll is made of high-quality low-carbon steel wire,which is weaved by heavy hexagonal wire machine with steel wire electric galvanized or hot-dip galvanized or PE/PVC coated. The zinc amount of hot-dip galvanizing is between 240g/㎡-300g/㎡,The zinc amount of Galfan(zinc-aluminum alloy)is between 240g/㎡-500g/㎡

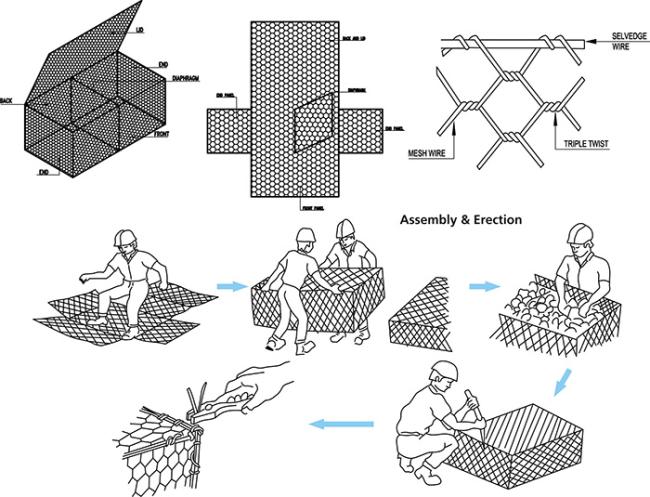

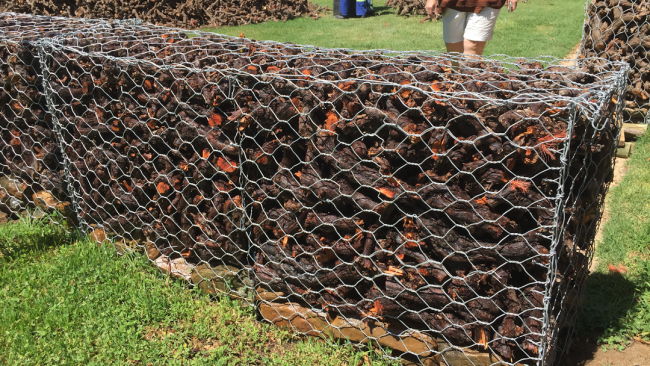

6/ Gabion baskets Installation Guidance
7/ Applications:
1)Control and guide of water or flood
2)Flood bank or guiding bank
3)Preventing of rock breaking
4)Water and soil protection
5)Bridge protection
6)Strengthening structure of soil
7)Protection engineering of seaside area.

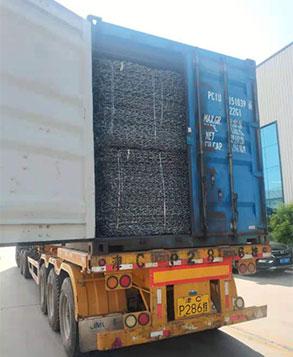

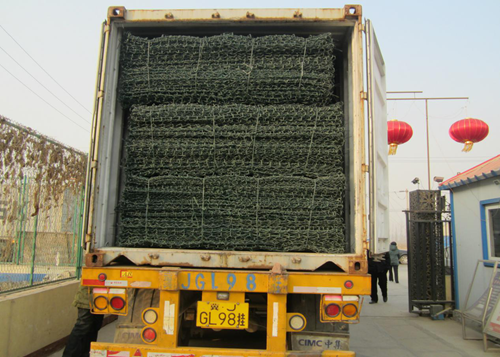

8/ Package & Shipment
1. compacted before packaging.
2. Plastic packaging outside and on the pallet. or according to the customers' requirment
