Mechanical Fluid Filtration Stainless Steel Cartridge Filter Housing 0.05mPa-0.6 MPa

Stainless Steel Mechanical Media Filter Housing For Water Treatment Mechanical Fluid Filtration

Mechanical Filter (Also called pressure filter ), It's very important procedure in pure water pretreatment and water purify system.

In water treatment field, filtration is a kind of water purifying process.Mostly filter medias are silica sand (widely use),anthracite and so on. Filter medias include three type:granular, powdery and fibroid. Silica sand,anthracite, activated carbon, megnetite,ceramic, plastic ball, ect.

According to actual demands, some multi media filter (filter bed) will use two kinds of media layers. In industrial water recycling system, can effectively remove impurity, absorb oil ect, at last to reach water recycling standard. Mainly functions are remove suspended or colloidal impurity, especially effectively remove small particle and bacterium, also can remove BODs and COD in certain level.

Discription

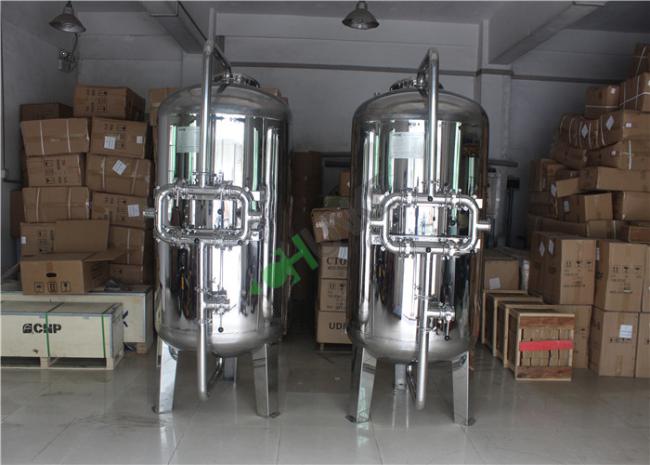

Mulit Media Filter Housing-Stainless steel

1. Material:SUS304/SUS316L/Q235/A3.

2. Design pressure: 0.6Mpa.

3. Finish:Lining/Epoxy/ Polished or sandblast external surface.

4. Water distribution type: diving helmet/Stainless steel center distribution drainage device

Advantages of Multimedia Filtration

• Relatively inexpensive, no recurring cost of consumables

• Proven process and most tested forms of water treatment

• Systems are robust with no moving parts inside the tanks

• Modular control valves designed for operational flexibility

• Filtration media is inexpensive and long-lasting

• Easily cleaned and maintained

• Resistant to fouling (clogging)
