15T Per Hour Reverse Osmosis Sea Water Treatment Equipment / Seawater Desalination System
Price:
Discussible
MOQ:
1 unit
Delivery Time:
7-15 days
Brand:
Chunke
Product Description
15T Per Hour Reverse Osmosis Sea Water Treatment Equipment / Seawater Desalination System
| CK-RO-15000L(A1)One stage Reverse osmosis water equipment configuration and quotation | ||||
| Process: Raw water pump - Sand filter - Carbon filter -Cartridge filter - High pressure pump-RO membrane host | ||||
| NO. | Device Description | Origin/brand | Quantity | Remarks |
| 1 | Raw water tank | 1PC | Provide by user | |
| Material: cement or FRP | ||||
| 2 | Raw water pump(CHL20-30 SS304 ) | CNP | 1 Set | |
| A. Flow: 22.0m3/H Head: 31m K = 4.0kw | ||||
| B. Including: return valve, pipe fittings and so on | 2 Set | |||
| 3 | Sand filter φ1500×2500MM | CHUNKE | 1 Set | |
| A. FRP tank | CHUNKE | |||
| B. Flange butterfly valve | 1PC | |||
| C. Top&bottom water distributor | 1 Set | |||
| 4 | Carbon filter φ1500×2500MM | CHUNKE | 1 Set | |
| A. FRP tank | CHUNKE | |||
| B. Flange butterfly valve | Runixn | 1PC | ||
| C. Top&bottom water distributor | 1 Set | |||
| 5 | 5μm Cartridge filter 230*1000MM | CHUNKE | 1 Set | |
| A. Model: CK-40''*15core material: SS304 | CHUNKE | 1 Set | ||
| B. 40″×5μm PP filters/φ300X1000MM | China | 15pcs | ||
| 6 | Dosing system (scale system) | 1 Set | ||
| A. Multi-drug pump SEKO603 Flow:0.79L/ H Head:103m | ||||
| B. Dosing tank 100L PE | ||||
| C. Including: return valve, pipe and so on | ||||
| 7 | High pressure pump CDLS20-10 | CNP | 1 Set | |
| A. Flow: 22.0m3/h Head: 111m | ||||
| B. Material: SS304 K=11KW | ||||
| 8 | Reverse osmosis water production: 15m3/h, desalination rate:96～99%, System water utilization: 60-70% | 1 Set | ||
| A. Membrane housing 8040-5core FRP | CHUNKE | 3pcs | ||
| B. Membrane element ULP-8040 | 15pcs | |||
| C. 304 Stainless steel frame | 5Set | |||
| Including: original water pump frame; pretreatment control valve frame; main frame; cleaning pump frame; and water supply system frame | ||||
| D. water electric valve | 1PC | |||
| E. concentrated water solenoid valve | 1PC | |||
| F. high pressure water inlet control valve | 1PC | |||
| G. Concentrated water flow control valve | 1PC | |||
| H. return flow control valve | 1PC | |||
| I. Check valve | 3PCS | |||
| 9 | Pipe fittings, valves U-PVC | China | 1 Set | |
| Pretreatment of low-voltage part of the use of high-quality U-PVC pipe; high-pressure part of the use of sanitary stainless steel pipe | ||||
| 10 | Electronic control system | CHUNKE | 1 Set | |
| PLC automatic control, RO membrane automatic washing, raw water shortage, water tank full automatic shutdown, low water level automatic water, electrical overheating, overload, overcurrent protection; low pressure sound and light alarm and other functions | ||||
| A. Touch screen (7 inches) | 1 Set | |||
| B. Mitsubishi PLC | Japan | 1 Set | ||
| C. In and out of water online TDS instrument / temperature display instrument | 2 Set | |||
| D. Electrical components | Schneider | 1 Set | ||
| 11 | Filter Media | China | 1 Set | |
| A. Quartz sand | China | 3750KG | ||
| B. Activated carbon | China | 1250KG | ||
| 12 | Pressure gauges | China | 1 Set | |
| A. reverse osmosis pressure gauge 0 ~ 25kgf / cm2 | China | 2pcs | ||
| B. high pressure pump low voltage protection switch | 2pcs | |||
| C. the system pressure gauge 0 ~ 6kgf / cm2 | China | 4PCS | ||
| 13 | Flowmeter (Pipe type) | China | 1 Set | |
| A. RO Water flow meter | ||||
| B. RO Concentrated water flow meter | ||||
| C. RO Return flow meter | ||||
| 14 | Washing equipment | 1 Set | ||
| A. 5μm Cartridge filter | ||||
| Model: CK-40''*7core SS304 | ||||
| 40″×5μm PP filters φ230×1000MM | 7pcs | |||
| B. Wleaning pump (CHL16-30, stainless steel) | CNP | 1 Set | ||
| Flow: 16m3/ H Head: 32m K=3.0kw | ||||
| Including: return valve, pipe and so on | ||||
| C. Water tank cleaning system 2000L PE | 1 Set | Provide by user | ||
| Including: return valve, pipe and so on | ||||
| 15 | Pure water tank 15T | 1 Set | ||
| Material: Stainless steel or FRP | Provide by user | |||
| 16 | Detection instrument | 1 Set | ||
| A. Hand-held PH meter / TDS instrument | ||||

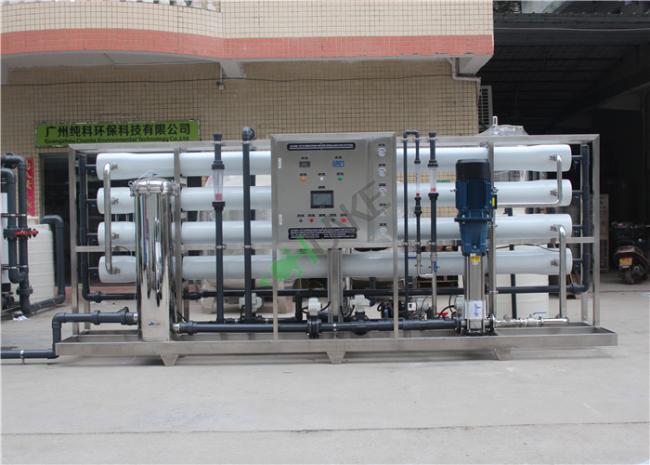

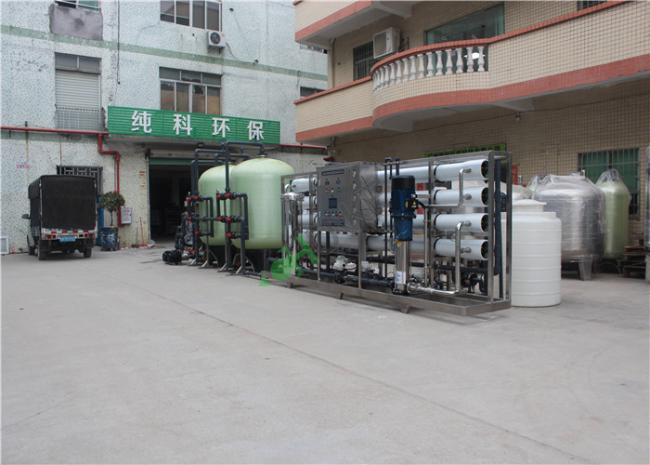

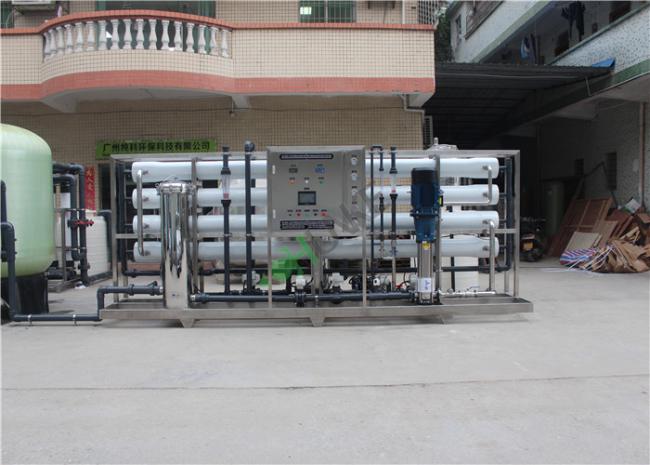

Detail Pictures :
