Product introduction

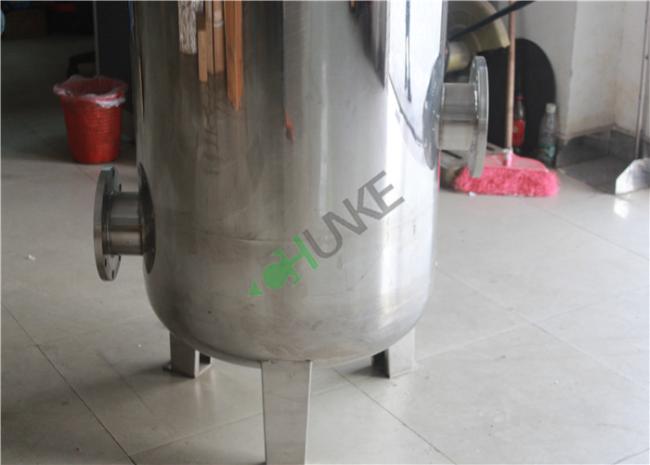

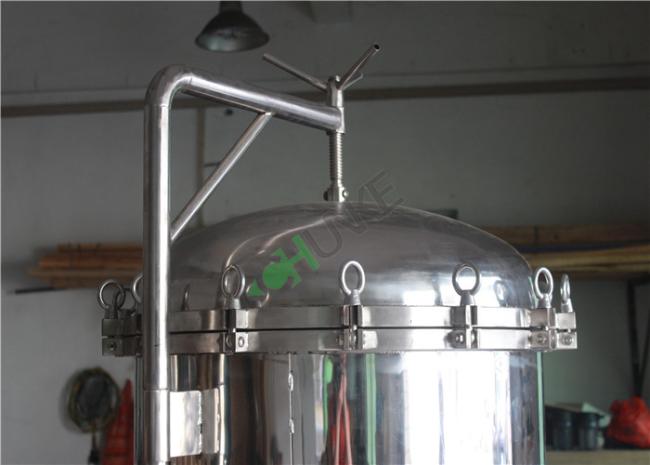

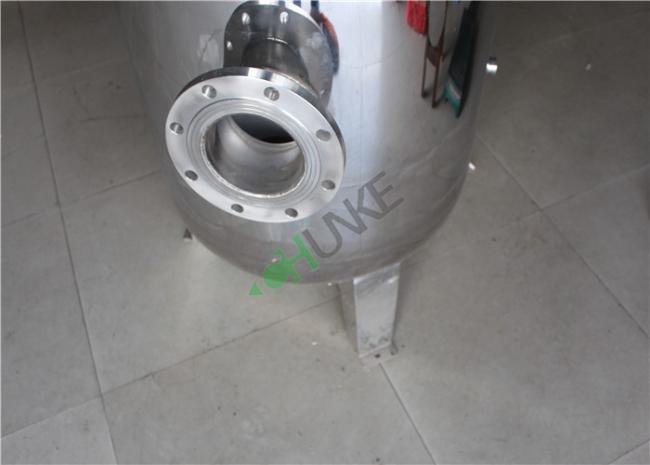

SS Bag Filter Housing is designed for optimum filtration performance. The range of SS Bag Filter Housing provides filtration solution for a broad

variety of fluid applications in the process industry. SS Bag Filter Housing is particularly useful for filtering large volumes of high viscosity liquids.

SS Bag Filter Housing is constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement, and choice of

end connections. The internal supports ensure that bags will not burst, as high differential pressures build up during operation.

Drinking Water Purifying Bag Cartridge Filter Housing

Operation

Unfiltered fluid enters the housing and is distributed evenly around the filter bags. Filtration takes place from inside to outside. Solids are

collected on the inside of filter bag for easy removal. The filtered fluid then exits through the outlet pipe.

The sizes of these pores are between the 1-50 micron.

The capacity depends on the surface area from the bags. Bigger systems can clean up to more than 500 m3 /h (multi bag filters)

There are special bags for various chemicals.

Engineering

The liquid flows from the top of the filter house (manufactured in either stainless or epoxy coated carbon steel) and is distributed equally

amongst the bags. The liquid comes out at the bottom leaving the dirt behind.

Since the bag is locked in at the top of the vessel all the dirt is trapped inside the bag. The filter vessel never requires cleaning after use.

Bag filters systems are applied is various industries solutions. Treated liquids include: milk products, paint, lime, beer etc.

It can also help you with replacement from various filter bags.

01.Small probability for side-bag leakage , which effectively guarantee the filtering quality.

02.Bag type filter can bear greater working pressure, it is of small pressure loss,low operation cost and obvious energy saving .

03.Accuracy of filtration bag increased continuously, it could reach 0.5 μm at most.

04.Bag type filter large handling capacity, small volume, containing a large quantity of pollutants.

05.Based on the working principle and structure of Bag type filtering system,which is convenient to replace the filter bag and without

cleaning,and time saving and labor saving.

06.Filtration bag could be use repeated after cleaning to save cost.

07.bag filter application scope is broad, with flexible operation and multiple installation
