EN 1.4542 Stainless Steel Rods Round Bars UNS S17400 17- 4PH 630

17-4PH is a chromium-nickel alloy that has a 4% copper additive, which enables it to be hardened

by very low-temperature heat treatments known as precipitation hardening.
The high percentages of chromium and nickel give this alloy excellent corrosion resistance,

physical properties, and a high level of strength at temperatures up to 800° F.

The major advantage of low temperature heat treatments is the elimination of distortion and scaling.
17-4PH has excellent mechanical properties and may easily be welded, deep drawn, forged,

and severely formed.

Chemical composition of grade 17-4PH stainless

Applications
This alloy is excellently suited for applications requiring high strength, good corrosion resist-ance

and good resistance to seizing and galling. 17-4PH finds extensive use in the aircraft and missile fields,

for motor shafts, instrument parts, gears, and etc.

Corrosion Resistance
The corrosion resistance of 17-4PH is slightly less-than-the superior resistance of the chro-mium-

nickel grades, but is somewhat higher than the straight chromium grades.
It possesses very good corrosion resistance against all atmospheric conditions.
Finish and heat treatment affect the level of corrosion resistance beneficially.

Product forms

17-4PH, 1.4542, SUS630 hot and cold rolled stainless steel strip, coil, and sheet

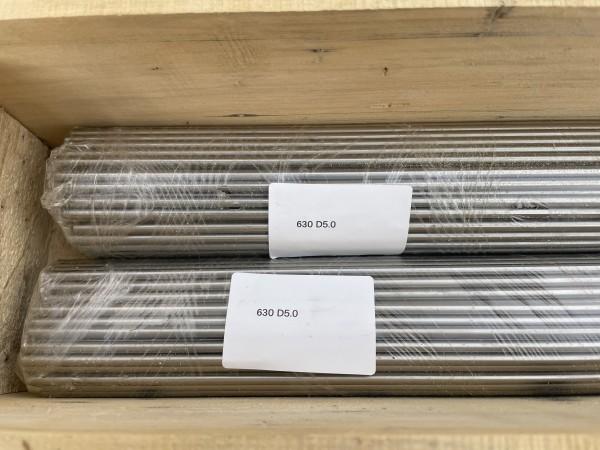

17-4PH, 1.4542, 630 stainless steel round bar, flat bar, drawn wire, rod

For Details, please Contact

WUXI GUANGLU Special Steel Co., Ltd.

Stainless martensitic • precipitation hardening steel • stainless ferritic — Our answer to your needs

Tel: +86 510 81812873

Email: export@guanglusteel.com
