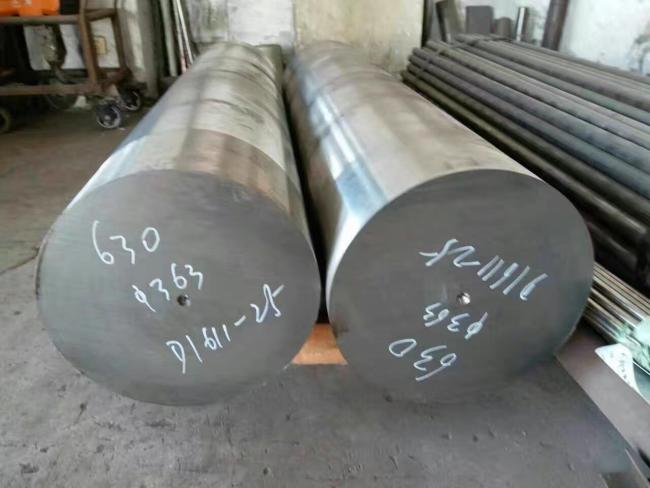

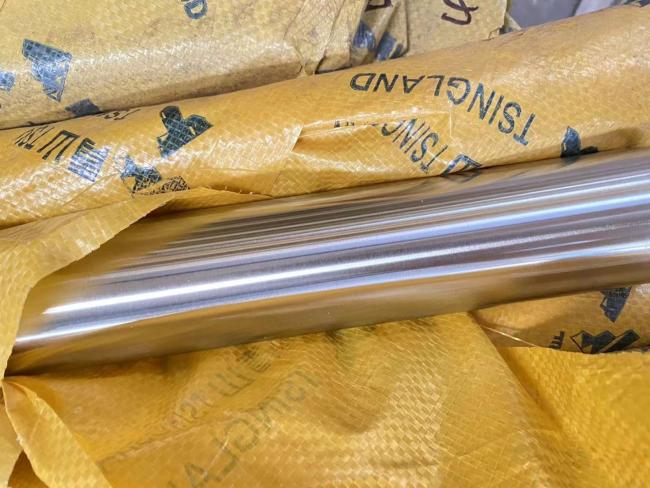

630 17-4PH 1.4542 Stainless Steel Bars

17-4PH, 630, EN 1.4542, DIN X5CrNiCuNb16-4 is a martensitic, chromium-nickel-copper

precipitation-hardening stainless steel that provides an outstanding combination of high strength,

good corrosion resistance, good mechanical properties at temperatures up to 600ºF (316ºC).

This alloy is typically furnished in Condition A (annealed) but can be cold rolled to various temper ranges.

Chemical composition ( % weight )

•  Carbon: 0.070 max
•  Manganese: 1.00 max
•  Silicon: 1.00 max
•  Chromium: 15.00-17.00
•  Nickel: 3.00-5.00
•  Copper: 3.00-5.00
•  Columbium +Tantalum: 5 x Carbon min – 0.45 max
•  Phosphorus: 0.040 max
•  Sulfur: 0.030 max
•  Iron: Balance

Density

0.280 lbs/in³, 7.80 g/cm³

MECHANICAL PROPERTIES AT ROOM TEMPERATURE
PROPERTIES: ANNEALED
AMS 5604 (gauges: ≥ .015 inches)
Ultimate Tensile Strength: 185 KSI max (1255 MPa max)
Yield Strength (0.2% offset): 160 KSI max (1105 MPa max)
Elongation: 3% Min
Hardness: Rc 38 max

PROPERTIES TEMPERED
Alloy 17-4 PH can be cold rolled to achieve the temper properties required by specific customers

and/or manufacturing requirements.
HEAT TREAT CAPABILITIES (AGED)

Typical Mechanical Properties

H900
Ultimate Tensile Strength:190 KSI min (1310 MPa min)
Yield Strength (0.2% Offset): 170 KSI min (1170 MPa min)
Elongation: 5% min
Hardness: Rc 40-48

H925
Ultimate Tensile Strength: 170 KSI min (1170 MPa min)
Yield Strength: 155 KSI min (1070 MPa min)
Elongation: 5% min
Hardness: Rc 38-46

H1025
Ultimate Tensile Strength: 155 KSI min (1070 MPa min)
Yield Strength: 145 KSI min (1000 MPa min)
Elongation: 5% Min
Hardness: Rc 35-43

H1075
Ultimate Tensile Strength: 145 KSI min (1000 MPa min)
Yield Strength: 125 KSI min (860 MPa min)
Elongation: 5% min
Hardness: Rc 35-43

H1100
Ultimate Tensile Strength: 140 KSI min (965 MPa min)
Yield Strength: 115 KSI min (790 MPa min)
Elongation: 5% min
Hardness: Rc 31-40

H1150
Ultimate Tensile Strength: 135 KSI min (930 MPa min)
Yield Strength: 105 KSI min (725 MPa min)
Elongation: 8% min
Hardness: Rc 28-38

H1400+1150
Ultimate Tensile Strength: 115 KSI min (790 MPa min)
Yield Strength: 75 KSI min (515 MPa min)
Elongation: 9% min
Hardness: Rc 26-32

The corrosion resistance of Type 17-4PH is comparable to that of Type 304 stainless Steel in most media and

superior to that of the hardenable 400 series stainless steels.
