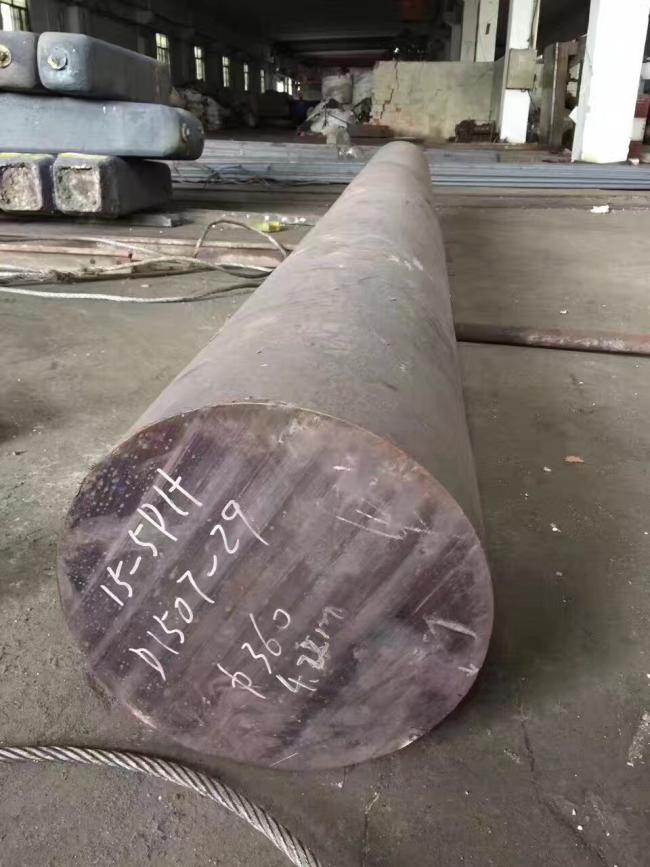

15-5PH EN 1.4545 DIN X5CrNiCu15-5 Stainless Steel Round Bars
Precipitation hardening 15-5 PH EN 1.4545 DIN X5CrNiCu15-5 stainless steel round bars
Type 15-5 PH is a martensitic precipitation-hardening stainless steel that provides high strength,
good corrosion resistance, good mechanical properties at temperatures up to 600°F (316°C)
and good toughness in both the longitudinal and transverse directions in both base metal and welds.
Short-time, low-temperature heat treatments minimize distortion and scaling.
Type 15-5 PH is the ferrite-free version of Type 17-4 PH stainless steel.
Both alloys are widely used in the aerospace, chemical, petrochemical, food processing, paper and
general metalworking industries.
|
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Cu |
Columbium plus Tantalum |
|
0.07 max |
1.00 max |
1.00 max |
0.040 max |
0.030 max |
14.00~15.50 |
3.5~5.5 |
2.5~4.5 |
0.15~0.45 |
Physical Properties
Melting Point: 2560 - 2625°F (1404 – 1440°C)
Density: 0.282 lbs/in3 / 7.78 g/cm3
Modulus of Elasticity in Tension: 28.5 X 106 psi / 196 GPa
Tensile Strength Minimum (psi): 160,000
Yield Strength Minimum 0.2% offset (psi): 140,000
% Elongation in 2” Typical: 8%
Hardness: Rockwell C35
Heat Treatments
15-5 is typically supplied in Condition A, and can be heat treated at a variety of temperatures and
times to achieve a wide range of properties. Below is a sampling of standard heat treatments for Condition A 15-5 material:
|
Condition |
Heat to ( +/- 15F / 8.4 ℃ ) |
Time at temperature ( H ) |
|
H900 |
900 F / 482 ℃ |
1 |
|
H1025 |
1025 F / 551 ℃ |
4 |
|
H1075 |
1075 F / 580 ℃ |
4 |
