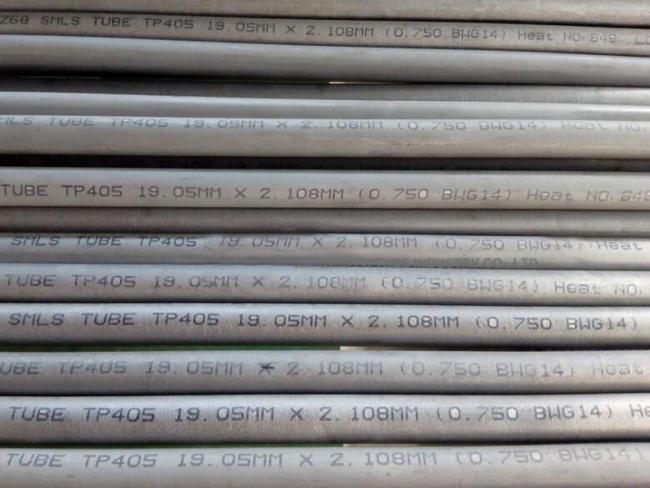

TP405 , EN 1.4002 , DIN X7CrAl13 Seamless Stainless Steel Tube / Pipe
A nonhardenable stainless steel that has been used in the as-welded condition.
It has been used for welded applications that require finish machining.
Corrosion resistance is similar to that of Type 410. The alloy possesses acceptable resistance to
sulfide stress cracking at Rockwell C 22 maximum hardness per NACE MR-01-75.
| Grade | element % | |||||||||
| C | Si | Mn | P | S | Cr | Al | Tensile strength | Yield strength | Elongation in 2 in or 50 mm, min,% |
|
| TP405, UNS S40500, DIN 1.4002 | 0.18 max | 0.75 max | 1.00 max | 0.040 max | 0.030 max | 11.50 ~ 13.50 | 0.10 ~ 0.30 | 415 Mpa | 205 Mpa | 20 |
Product forms
ASTM A268/A268M standard for seamless and welded ferritic and martensitic stainless steel tubing
TP405, UNS S40500, EN 1.4002, DIN X6CrAl13 stainless steel tube, cold rolled ( drawn ), annealed,
OD 6 ~ 219 X WT 0.5 ~ 25.4mm
For Details, please Contact
WUXI GUANGLU Special Steel Co., Ltd.
