Grade EN 1.4031 DIN X39Cr13 Stainless Steel Wire For Surgical Needles
Grade EN 1.4031 DIN X39Cr13 Stainless Steel Wire For Surgical Needles
Grade 1.4031 is a martensitic stainless chromium steel that is corrosion resistant to water and steam.
This requires the hardened and low tempered state and a shiny, polished surface preference.
Due to a higher carbon content, 1.4031 stainless can achieve a higher hardness than 1.4028 or 1.4021 stainless.
Due to its chromium content, 1.4031 stainless has good corrosion resistance in moderately aggressive,
nonchlorine-containing media, such as soaps, solvents and organic acids.
Typical application

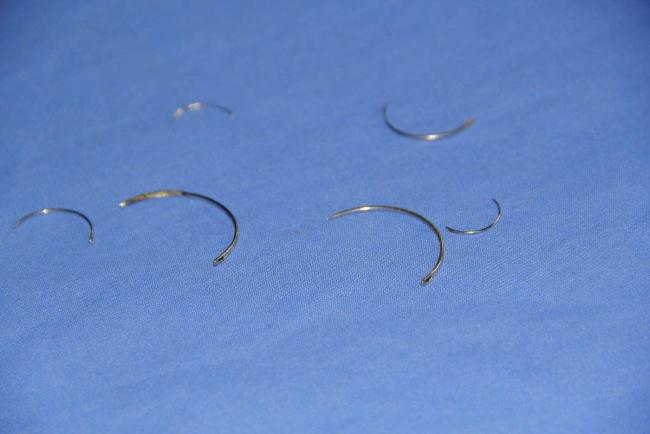

Surgical needle wire
Standards
| DIN EN 10088-3 (X39Cr13, 1.4031) ASTM F899 AISI 420X (UNS S42000) |
Chemical composition ( weight % )
| Grade | C | Si | Mn | Cr | Tensile strength |
| 1.4031 | 0.36~0.42 | 1.00 | 1.00 | 12.50~14.50 | 700 - 900 Mpa |
Heat Treatment
Soft Annealing
Temperature: 745 – 825°C
Cooling: Air
Hardening
Temperature: 950 – 1050°C
Cooling: Oil, air
Tempering
Temperature I: 650 – 750°C
Temperature II: 600 – 700°C
Forms of supply
Stainless steel wire in coil or spool
