630 17-4PH DIN 1.4542 Stainless Steel Round Bars

Grade 17-4PH (1.4542) is perhaps the most common example of the precipitation hardening stainless grades.
It combines good corrosion resistance with high strength and good impact toughness.

630 stainless grade combines the following characteristics:

• Good corrosion resistance (just below that of 304)
• High hardness and strength
• Controlled balance of mechanical properties by ageing (precipitation hardening)
• Improved toughness compared to 431 including use at sub-zero temperatures for the softer conditions
• Magnetic
• Thermal expansion comparable to carbon steel
• Easier to weld than martensitic grades like stainless 420 and 431


17-4PH develops its high strength from the precipitation of copper particles in its martensitic matrix.
It comes in various conditions denoted by H plus ageing temperature in °F, for example H900, H1025 etc.
The higher the ageing temperature, the lower is the strength and the higher are the ductility and toughness.
The minimum 0.2% PS varies from 520 MPa to 1170 MPa depending on the condition.

The combination of high strength and good corrosion resistance finds uses in:
Drive shafts, bearings, gears, hydraulic rams, valve stems, load cells, bridge bearings, tensioning systems,
golf clubs, quick release pins, fasteners, aerospace, medical devices, food processing, conveying equipment,
fall arrest systems.

17-4 PH is the natural choice of high strength, corrosion resistant steel particularly where standard martensitic
stainless grades like 431 aren’t quite good enough.

Chemical composition ( weight % )


Product forms

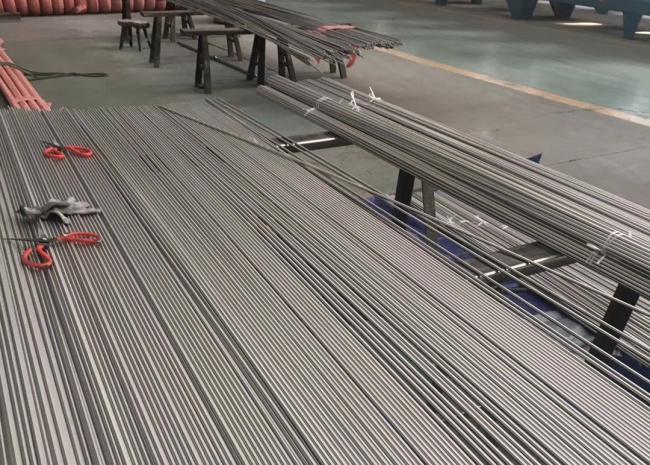

• Hot rolled stainless steel round bars
• Hot forged stainless steel round bars
• Cold drawn stainless steel wire in coil or rods, cut lengths, straightened
