DIN X3CrNiMo13-4 EN 1.4313 Hot Rolled Stainless Steel Plates
DIN X3CrNiMo13-4 EN 1.4313 Hot Rolled Stainless Steel Plates
EN 1.4313, DIN X3CrNiMo13-4 is a low–carbon martensitic stainless steel with basic corrosion resistance,
good strength, good toughness and much better weldability than most martensitic grades of stainless steel.
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N |
|
EN 1.4313, DIN X3CrNiMo13-4, S41500, F6NM |
0.05 max | 0.70 max | 1.50 max | 0.040 max | 0.015 max | 12.00~14.00 | 3.50~4.50 | 0.30~0.70 | 0.02 max |
Stainless X3CrNiMo13-4 grade combines the following characteristics:
- Basic pitting and crevice corrosion resistance
- Moderate sulphide stress cracking resistance
- Good yield strength (520 to 800 MPa minimum in EN standard depending on heat treatment)
- Better toughness than most martensitic grades (one of only 2 martensitic grades with guaranteed sub-zero
- impact toughness in EN pressure standards)
- Good weldability compared to other martensitic grades. Still requires pre- and post-weld heat treatment
DIN 1.4313 is martensitic grade of stainless steel with several important enhancements.
The molybdenum addition gives an improved corrosion resistance.
The low carbon gives much improved weldability and along with the nickel produces excellent toughness.
The dominant use of this grade is in the oil and gas industry.
Applications which illustrate these features include:
Valve bodies, flanges, valve seats, oil field equipment, hydro-electric turbine systems, pumps,
chemical process plant, pressure die casting.
Form of supply

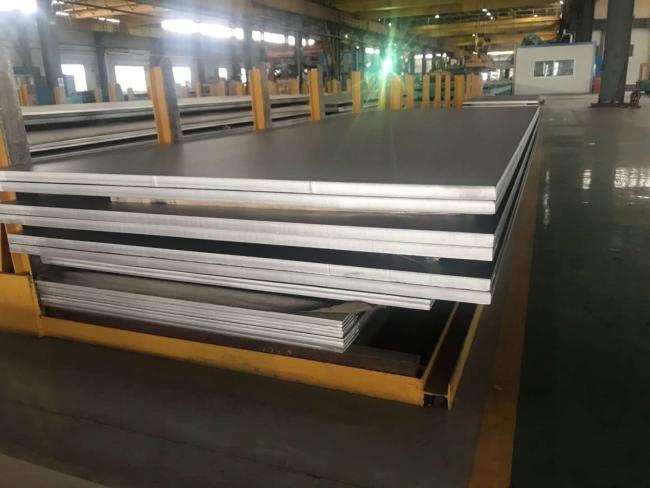

Hot rolled stainless steel plate EN 1.4313, DIN X3CrNiMo13-4, S41500, F6NM
Thickness 5.0 ~ 150.0mm X Width 2000mm max.
