Material 1.4923 Strip X22CrMoV12-1 Stainless Steel Sheet, Plate
Material 1.4923 Strip X22CrMoV12-1 Stainless Steel Sheet, Plate
X22CrMoV12-1 (1.4923)
This chromium-molybdenum-vanadium steel according to DIN EN 10269 that can be
quenched and tempered has proved very well for the use of heat-resistant disc springs.
EN 10302: 2008 Creep resisting steel, hardened and tempered.
Usual upper temperature limit for continuous operating 580°C.
Components featuring elevated high-temperature strength for use in thermal engines and power plants,
such as turbine blades, turbine discs, screws, bolts, pins and shafts.
| EN / DIN | BS | AFNOR | SIS |
|
1.4926, X21CrMoV12-1 1.4923, X22CrMoV12-1 1.4922, X20CrMoV12-1, X20CrMoV11-1 ~ 1.4934 LW |
762 | Z21CDV12 | 2317 |
Chemical composition %, average
| C | Si | Mn | Cr | Mo | Ni | V |
| 0.22 | 0.25 | 0.70 | 11.40 | 0.95 | 0.70 | 0.30 |
Applications
Components featuring elevated high temperature strength for use in thermal engines and power plants,
such as turbine blades, turbine discs, screws, bolts, pins and shafts, disc washers.
Heat treatment
Annealing
730 - 780°c / cooling in furnace
Stress relieving
600 - 680°c / cooling in furnace
Hardening
1020 - 1060°c / Oil, air
Tempering
I ... 700 - 780°c / Air
II ... 670 - 750°c / Air

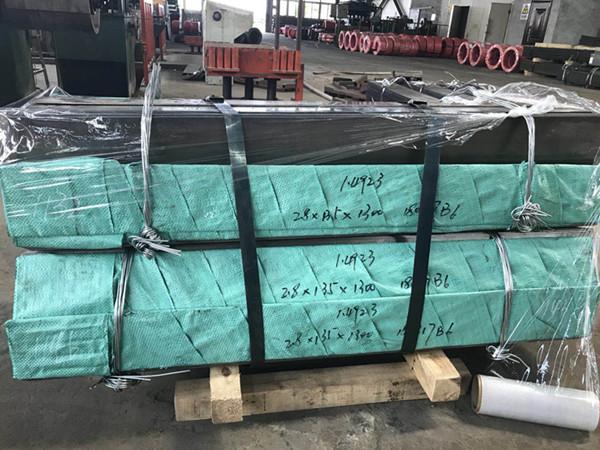

Form of supply
Our wide capabilities give us a unique ability to supply all of your 1.4923, X22CrMoV12-1 stainless steel strip, coil, and sheet needs.
