JIS SUS420J1 Stainless Steel Sheets AISI 420 Stainless Plates For Brake Disc Motorcycle
JIS SUS420J1 Stainless Steel Sheets AISI 420 Stainless Plates For Brake Disc Motorcycle
Martensitic stainless steel JIS SUS420J1 for motorcycle brake disks.
SUS420J1 (13%Cr-0.2%C) and SUS420J2 (13%Cr-0.3%C) had mainly been used as rotor materials.
The disk brake is a system which slows down a motorcycle by frictional force generated when brake pads
clamp a rotor rotating in linkage with a wheel from both sides.
The rotor needs proper hardness ( generally, Rockwell hardness of 32–38HRC) to secure wear resistance
and deformation resistance, and also needs sufficient heat resistance to maintain these properties
under the heat generated by braking.
Characteristics
good heat resistance and corrosion resistance
Grades
| Material no. | C | Cr |
| JIS SUS420J1 | 0.16~0.25 | 12.00~14.00 |
| JIS SUS420J2 | 0.26~0.35 | 12.00~14.00 |
Product forms

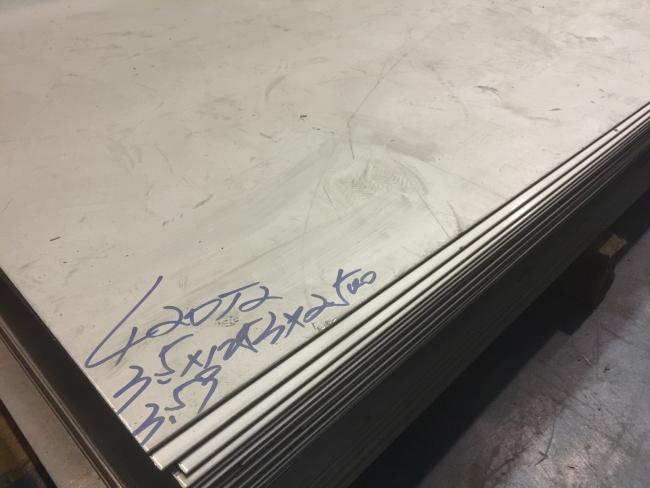

Hot rolled stainless steel sheets, plates, cut to lengths, coil processed products,
grades JIS SUS420J1 and SUS420J2
typical thickness 3.5/4.5/5.5mm or 3.2/4.2/5.2mm.
For Details, please Contact
WUXI GUANGLU Special Steel Co., Ltd.
Stainless martensitic • precipitation hardening steel • stainless ferritic — Our answer to your needs
