PH13-8Mo ASTM XM-13 Cold Rolled Stainless Steel Sheet UNS S13800 Strip
PH13-8Mo ASTM XM-13 Cold Rolled Stainless Steel Sheet UNS S13800 Strip
PH13-8 alloy (UNS S13800) is a martensitic precipitation-hardening stainless steel that
has excellent strength,high hardness, superior toughness, and good corrosion resistance.
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | Al |
| PH13-8Mo | 0.05 | 0.10 | 0.20 | 0.010 | 0.008 | 12.25~13.25 | 7.5~8.5 | 2.00~2.50 | 0.9~1.35 |
Good transverse toughness properties are achieved by tight chemical composition control,
low carbon content,and vacuum melting.
The strengthening mechanism (precipitation hardening in a martensitic matrix) makes
it possible to achieve uniform strengthening in heavy sections.
Strength and ductility levels can be tailored to the application by varying the aging temperature.
Typical applications are large airframe structural components, injection molding equipment
and slide gates to control water flow.
The S13800 alloy is martensitic in structure in the solution annealed condition and is further strengthened
by a relatively low temperature heat treatment, which precipitates a strengthening phase in the alloy.
Like the S17400 alloy, the S13800 alloy requires only a simple heat treatment,
a one step process conducted at a temperature in the range 950°F (510°C) to 1150°F (620°C)
depending on the combination of strength and toughness desired.
A wide range of properties can be produced by this one step heat treatment.
Heat treatment at about 950°F (510°C) produces the highest strength.
Product forms

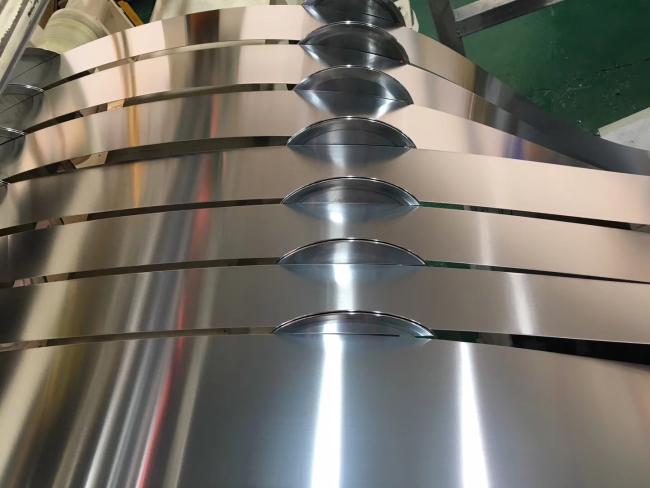

We supply PH13-8Mo, UNS S13800 stainless steel sheet, plate, strip and coil
ASTM A693, ASME SA693
