Electric Circular 2 Pin Connector Male Female Waterproof For Underwater Lights
Electric Male Female 2 Pin Waterproof Circular Connectors For Underwater Lights

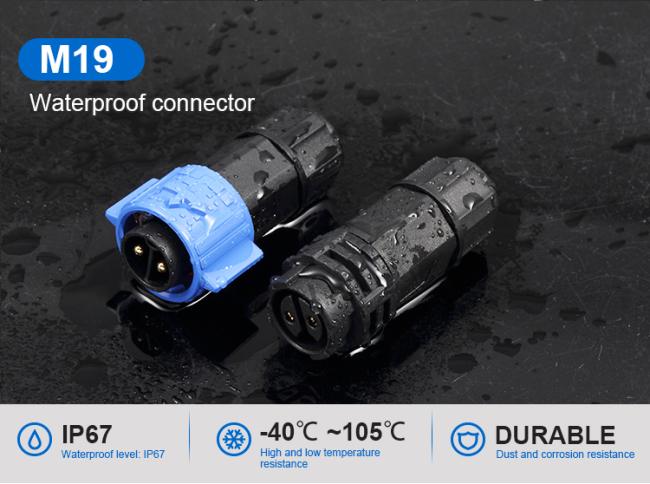

M19 2 pin male female connector
1. Push locking connection mode
2. Protection level: IP67
3. Connection method: soldering(welding),screw terminal
4. Assembly: assembly type, male and female connector.
5. Certification: UL,TUV,RoHS,CQC,CE
M19 2 pin male female circular connector could be widely used for LED lighting, outdoor display, elctrical equipments, automation machines,robot etc.
M19 Connector Technical Specification
| Specifications: | |
| Connection way: | Push pull locking waterproof connector |
| Core number: | 2 pin circular connector |
| Connector type : | Assembly connector |
| Connector color: | Black, blue, yellow |
| Waterproof level: | IP67 |
| Cable specification: | 18AWG-12AWG |
| Cable diameter range: | 4.5mm-11mm |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
| Withstand voltage (AC.V)1min: | 1500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥3000 mating and unmating cycles |
| Temperature rating: | -40°C~105°C |
| Connecting mode: | Solder type/screw terminal |
| Flame-resistance: | UL94-V0 |
| Material: | |
| Shell and insulated parts: | High performance engineering plastics |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| Sealed against dust and fluid (IP67) | |
| Vibration resistance, impact resistance, stretching resistance | |
| Dust cover available | |
Waterproof Connector's benefits :
1. Great suitable for Outdoor LED light, LED equipment, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.
2.Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
3.With environmental protection material:high performance engineer plastic is good for environmental protection.

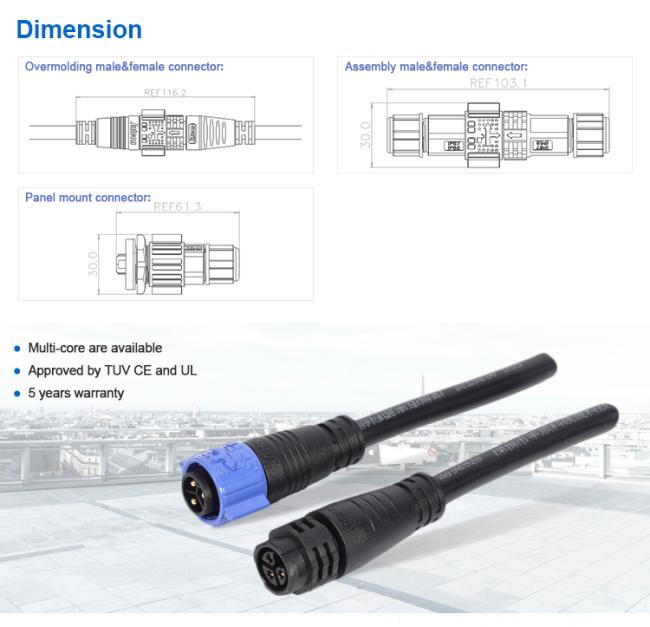

M19 male female connector's dimension
