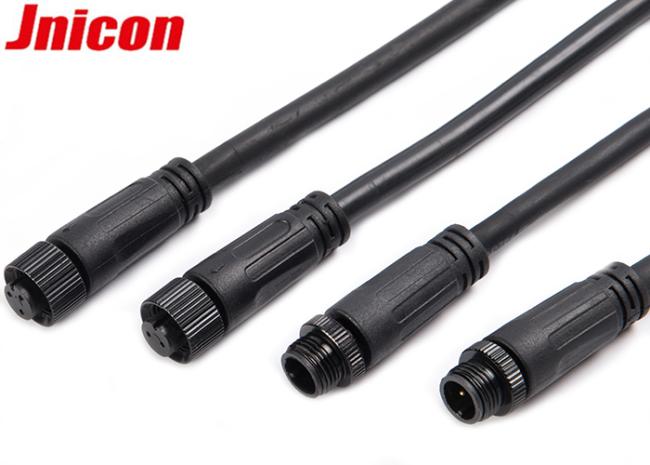

IP68 3 Pin Male Female Wire Connector Waterproof Screw Locking Convenient Install
IP68 3pin Waterproof Male Female Connector , Jnicon Waterproof Wire Connector
Product Details:
Great suitable for Outdoor LED light, LED equipment, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.
Moisture-proof and Dust-proof waterproof connector, never leave your precious wires exposed and have a good protection on them.
1. Multicore are optional, such as 2 pin,3pin,4pin,5pin,6pin
2. Connection method: screw locking
3. Connector type: cable to cable
4. Certification: UL, TUV, RoHs, CQC,CE
5. Max current: 10A/300V
6. IP67 protection level
Basic Specification:
| Connecting mode: | Screw locking waterproof connector |
| Core number: | 3 pin |
| Connector type : | overmolded connector |
| Connector color: | Black |
| Waterproof level: | IP68 |
Technical Specification:
| Cable specification: | 20AWG-16AWG |
| Cable diameter range: | 4.5mm-9mm |
| Rated current (A): | 10A |
| Operating voltage (AC.V.rms): | 300V |
| Withstand voltage (AC.V)1min: | 1000V |
Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥3000 mating and unmating cycles |
| Temperature rating: | -40°C~105°C |
| Connecting mode: | Solder type/screw terminal |
| Flame-resistance: | UL94-V0 |

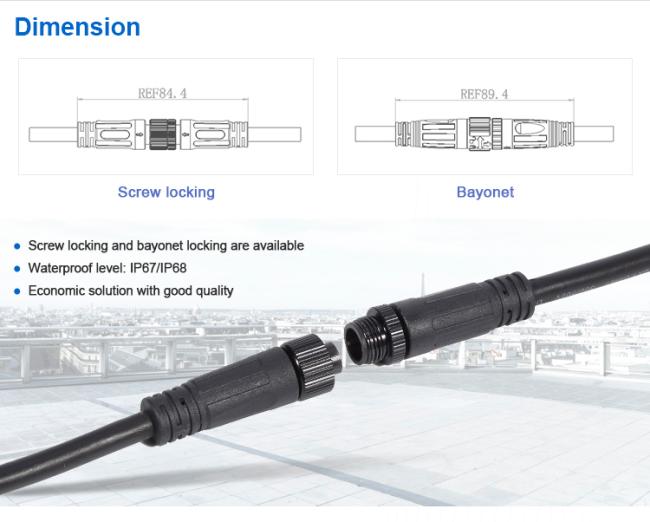

M12 smaller size waterproof connector is a economic solution for power connection, no matter for indoor or outdoor, both could be suitable for you. IP68 waterproof level and screw locking method makes this connector to be a high competitive option, cable length could be customized as your requirements.
| Sealed against dust and fluid (IP68) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover available |
