2P Black Cable Outdoor Waterproof Connectors , Jnicon Waterproof Y Connector
2P Black Cable Outdoor Waterproof Connectors , Jnicon Y Type Waterproof Connector
Description of 2 pin male and female waterproof connector
Main Feature
- Parallel & Series circular available
- Different cable size and length welcome
- 2PIN 3 PIN could be support in Y connector
- Outputs quanity could be different in 2 way,3way to many connection model
- Could support to build in different connector models:M12 M14 M15 M16 M19 connectors
- IP68 waterproof connectors
- Male female connector
- Waterproof LED connector

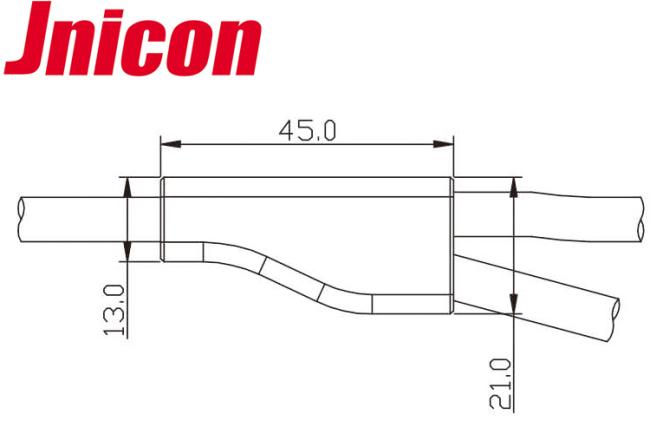

Y type waterproof connectors is in common use for led street lighting,Popular to all the lighting application, this thread locking connectors could support IP68 outdoor using, no matter for dimming lights, landscape lighting or floor lighting,even its is widely used in many others underwater tight request application.
| Operation Parameters | |
| Voltage Rating | 500VAC max |
| Current Rating | 20A max |
| Min Wire Size OD | 3.0mm ~ 6.0mm |
| Max Wire Size OD | 6.5mm ~ 9.0mm |
| Max.Cable Cross Section Area | 0.3mm2 ~ 1.5mm2 |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory. Located in Jnicon Industrial Park, Bao'an District,Shenzhen,China
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.
3. Q: How can I get samples?
A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
