Mini Y Shape Outdoor Waterproof Connectors Four Ways Male Female IP68 Screw Locking
Mini Y Shape Outdoor Waterproof Connector Four Ways Male Female Connector
The features of Mini Y Shape Four Ways Outdoor Waterproof Connector:
1. 2 pin mini Y shape outdoor waterproof connector for cable welding
2. Pins: 2 pin, 3 pin, 4 pin, 5 pin
3. IP68, waterproof and dust-proof
4. Current rating is 10A
5. OEM/ODM are accepted .
6. Connecting mode is screw locking type, Closely connected.
7. safe, stable and durable.
The specifiction of Outdoor underground IP68 waterproof LED connector
| Number of contact | 2 pin/3 pin/4/pin/5 pin |
| Current rating | 10A |
| Voltage rating | 300V |
| Contact diameter*number | ∅1.5 |
| Withstanding voltage | 1500V |
| Cable gauge | 24-16AWG |
| Operating temperature | -40°C~+105°C |
|
Material |
|
|
Shell&insulated parts |
High performance engineering plastics |
|
Hardware metal |
Zinc alloy(pearl hard chromium) |
|
Contact pin |
Copper alloy(gold-plated) |
|
Spring |
Stainless steel |
|
Sealing |
Silica gel |
Application
M15 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,
landscape lights,underwater lights,equipments etc, meet more industry application requirements.
Jnicon will provide waterproof connector technological maintenance and guarantee within one year if any quality problem happens to our product.

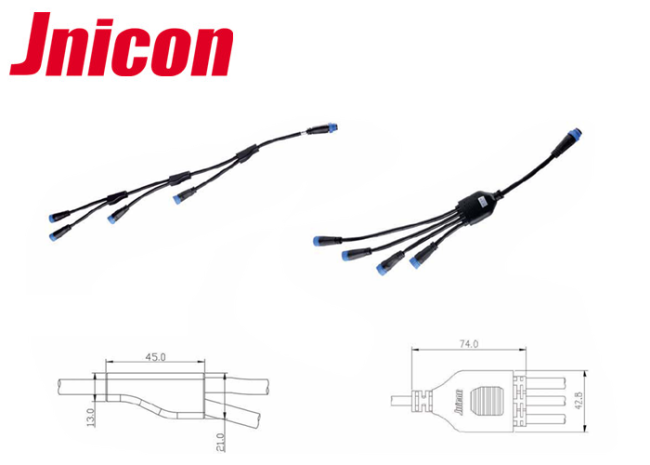

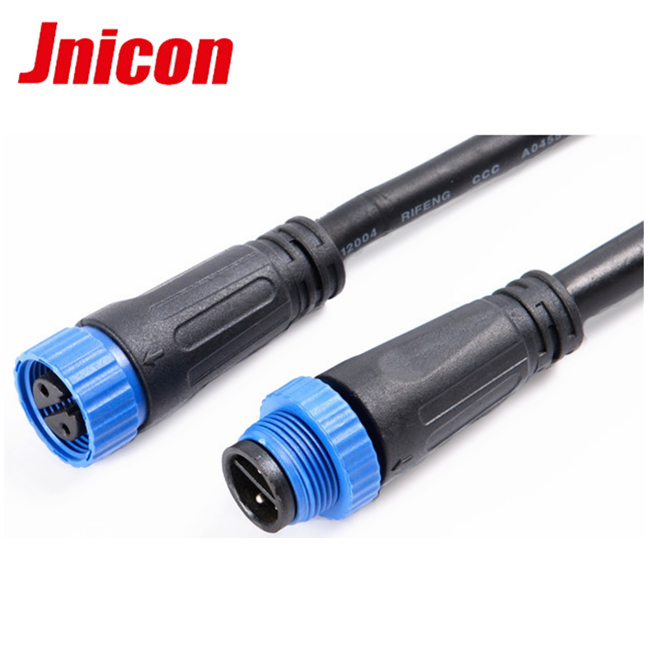

Product detail picture
