3 Wire T Shaped Outdoor Waterproof Connectors For Colorful LED Wall Washers
3 Wire T Shaped Outdoor Waterproof Connector For Colorful LED Wall Washers
Features

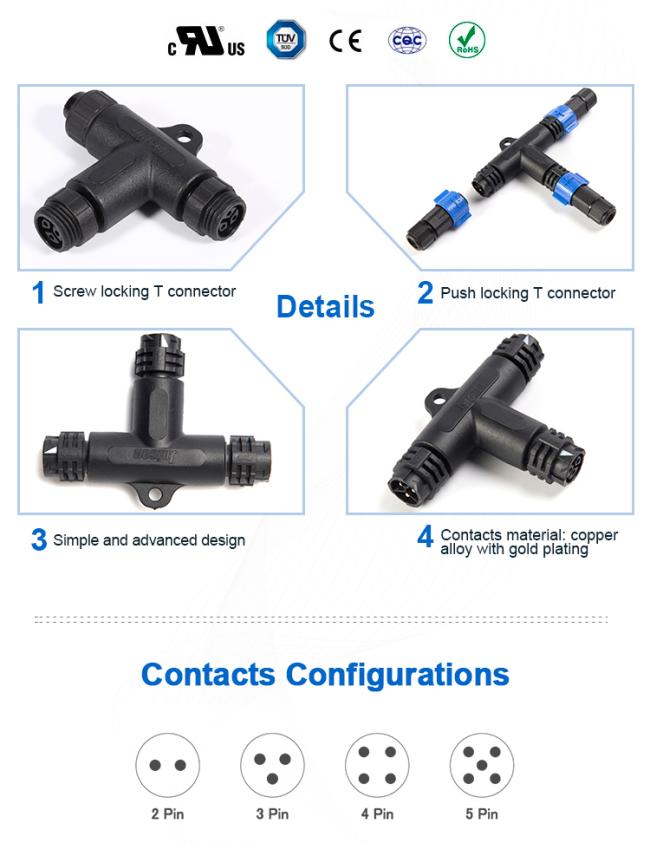

1. T type waterproof connectors
2. Multicore: 2,3,4 pin available
3. Connection method: push locking
4. Dustproof cover available under off-working condition.
5. Certification: UL,TUV,RoHS,CQC,CE
Technical Specification
| Connector Model: | M19 overmolded waterproof T connector |
| Waterproof level: | IP67 |
| Cable specification: | 20AWG-12AWG |
| Cable diameter range: | 4.5mm-12mm(18AWG-12AWG) |
| Core number: | 2 pin,3pin,4pin |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
| Withstand voltage (AC.V)1min: | 1500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Service | Cable length could be customized |
Main characteristics:
| Sealed against dust and fluid (IP67) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover to male and female are available |
Application industries:
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery charging | Automation |
| Solar energy | Ship equipment | Agriculture |
| Electric power equipment | Vehicles | Ebike/motorcycle |
| Communications | Pool lights | Transportation |
Product Benefits
1. Overmolded T connector could be a nice option for your DIY connector to outdoor or indoor electrical wire extension, such as land scape LED light, led strips, wall washer bar, Audio and video, Telecommunication, Marin, factory automation control, wireless bridge and other places need waterproof power extension use, even underwater or underground both could be well used.
2.Flexiable extension to different cable length and spec, fast to install all connections.
