3 Pole Waterproof LED Connectors Male And Female Outdoor Sealed With Cable
Price:
Negotiable
MOQ:
100 (10 Pairs of samples)
Delivery Time:
3-5 working days
Brand:
Jnicon
Product Description

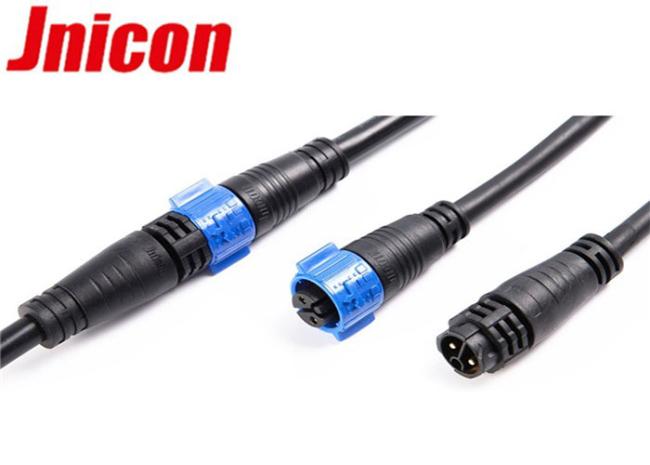

3 Pole Male And Female Outdoor Waterproof Led Connector Sealed With Cable
Product Features
- IP67 waterproof level
- Dust cap available to protect your product when off-working
- Cable length could be customized as per client's requirements
- 20A current rating
Technical Data
| Connector type : | overmolded cable connector |
| Connector color: | Black, blue, yellow,white(grey) |
| Waterproof level: | IP67/IP68 |
| Cable specification: | 20AWG-12AWG |
| Cable diameter range: | 4.5mm-11mm |
| Contact diameter*No. | Φ1.0-Φ2.4 |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
Cable length could be customized according to your requirements, multipins avaialble such as 2 pin,3pin,4 pin,..12pin and more, power and signal could be combined together, welcome to OEM or ODM.
Material
| Shell and insulated parts: | High performance engineering plastics |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
Better quality connectors could be used for a long time and no need to replace always, UL approved material and connectors to ensure your applications long working time and more stable.
Popular Applications
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery | Automation |
| Solar energy equipment | Ship equipment | Agriculture |
| Electric power equipment | Vehicle equipment | Ebike/motorcycle |
