Black Wire Waterproof Male Female Connector 10A / 300V 3 Pin Metal Screw Type
Price:
Negotiable
MOQ:
100 (10 Pairs of samples)
Delivery Time:
3 - 5 days
Brand:
Jnicon
Product Description
Metal Screw Type Wire Waterproof Male Female Connector 10A / 300V 3 Pin
Description of Male Female Connector
1. 3Pin waterproof male female connector .
2. PA66 waterproof cable connector .
3. Waterproof and dustproof circular connector .
4. LED lighting waterproof connector .
Product Features
1. Small size is suitable for narrow environment . ( max length : 50mm )
2. Great quality with competitive price .
3. Max current : 10A
4. Protection level can be IP68
5. Type : screw type
Details of Connector
| Basic information | |||
| Product name | M12 3Pin connector | ||
| Current / Voltage | 10A / 300V | ||
| IP level | IP67 | ||
| Insulating parts | PA66 | ||
| Material of copper needles | Gold - plated | ||
| Cable Specification | 0.5mm2 - 1.5mm2 | ||
| Housing | PA66 | ||
| Temperature | -40℃ - 105℃ | ||
| Material of Cable | UL94 - V0 | ||
| Color of Connector | Black | ||
| Application | Lighting / power | ||
| Warranty | 5 Years | ||
- M12 screw type male female connector , except for 3pin connector , there are also 2pin , 4pin , 5pin .
- For M12 waterproof connector , there is only cable overmold connector connect with cable by soldering
- If you want the assembly type connector , M15 / M16 / M19 / M25 male female connector could be choosed .
- if you want to connect the cable by crimping , M19 / M25 waterproof male female connector could meet your request .
- More special requirement , like material of cable , length of cable etc , please feel free to contact me for solution

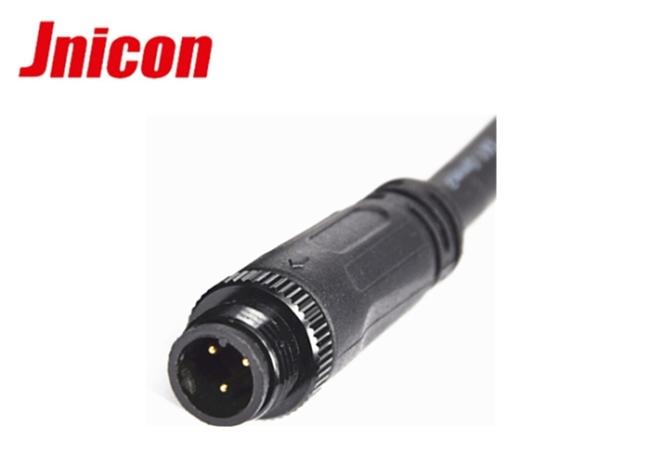

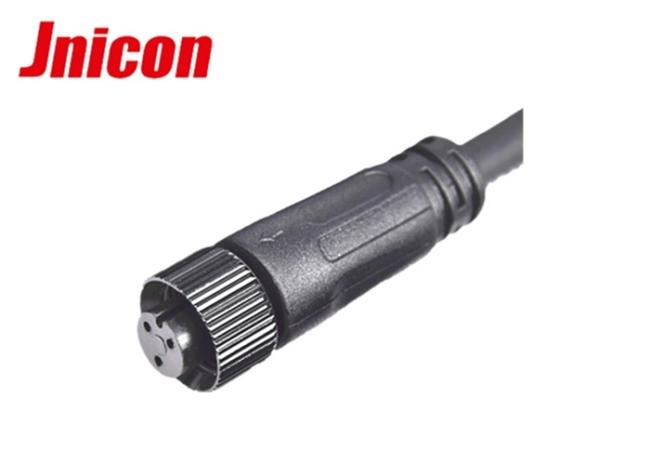

3Pin Male Female Connector Picture Show
