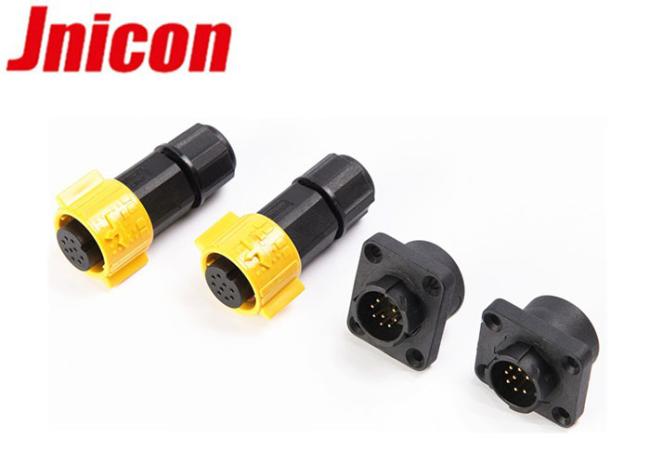

Waterproof Electric Signal Connector 9 Pin With Male Female Plug IP67
Price:
Negotiable
MOQ:
100 (10 Pairs of samples)
Delivery Time:
3-5 working days
Brand:
Jnicon
Product Description
Electric Signal 9Pin Waterproof Data Connector With Male Female Plug IP67
Product Description:
1. Push locking type waterproof connector
2. IP67 protection level
3. Could be field assembly to your applications
4. Multicolor available, such as Blue,yellow,black
9 pin waterproof data connectors not only could be used for led application, also can be a good option to industrial equipment, control box,automatic signal transmission etc.
Technical Data of 9 pin connector :
| Connector color: | Black, blue, yellow |
| Waterproof level: | IP67 |
| Cable specification: | 0.3-0.5mm2 |
| Cable diameter range: | 4.5mm-11mm |
| Contact diameter*No. | Φ1.0-Φ2.4 |
| Rated current (A): | 5A |
| Operating voltage (AC.V.rms): | 125V |
| Withstand voltage (AC.V)1min: | 500V |
Reliability to 9 pin connector :
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥3000 mating and unmating cycles |
| Temperature rating: | -40°C~105°C |
| Connecting mode: | Solder type/screw terminal |
| Flame-resistance: | UL94-V0 |
High quality material to 9 pin connector:
| Sealed against dust and fluid (IP67) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover available |
