300V 10A Waterproof Cable Connector Male Female Over Molding With Screw Locking
300V 10A Over Molding Waterproof Male Female Connector With Screw Locking
Product Description
1. IP68 waterproof connector
2. Over molding type with cable
3. Screw locking type for quick installation
4. Cable length and specification can be customized as per customer's requirement
5. Waterproof male female connector using for LED lighting
Product Features
1. Rated voltage: 300V for 2~4Pin, 125V for 5~8Pin
2. Current Rating: 10A
3. Contact diameter: Φ1.5
4. Withstanding voltage: 1500V
5. Operating temperature: -40℃-105℃
6. Life: Plug 500 times should not appear harmful plug seats machinery and performance damage
| Main characteristics | |
| Sealed against dust and fluid (IP68) | |
| Vibration resistance,impact resistance | |
| Molded with cable | |
| Application industries | |
| Stage equipment | |
| Medical equipment | |
| LED equipment | |
| Electric power equipment | |
| Communications equipment |
Our Services
1) IP68 waterproof in locked condition with ISO9001 management under efficient service
2) Provide free samples within 3 working days if it is normal product with existing tooling
3) Effective communication and rapid response
4) Early design-in capability,OEM, ODM are available
5) Any customization is welcome
6) 3 years quality assurance.

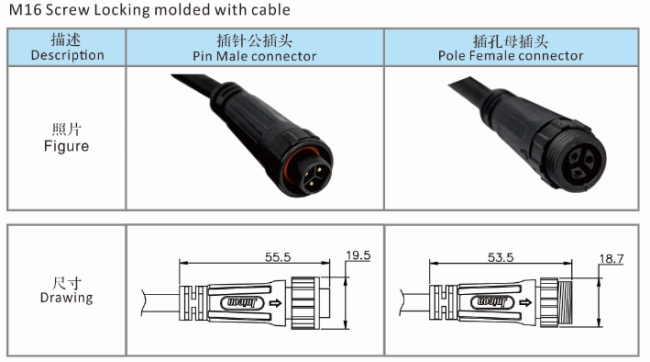

Product Dimention
