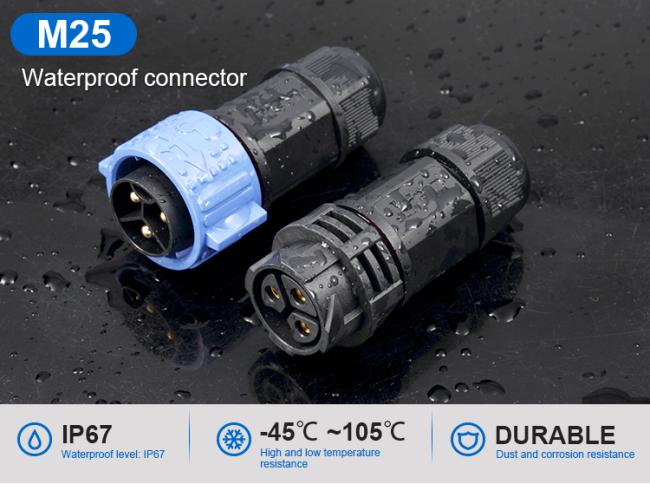

Cable To Cable Waterproof Male Female Connector M25 3 Pin Push locking
Cable To Cable Waterproof Male Female Connector , M25 Waterproof 3Pin Connector
Description of 3Pin male female connector
M25 waterproof power connector is the perfect solution to make your own waterproof connection cables easily. Thanks to its screw based terminal, soldering is not required and installation just takes a few minutes.
Once assembled, the M25 Outdoor Waterproof Conector is easy to plug and play while keeping the elements and water out of splices and junctions. To disconnect, just unscrew the main body and pull apart the two ends.The M25 Waterproof conector has multiple waterproofing levels, consisting of o-rings, waterproof sealant, and flexible end seals designed to tighten and close awhen screwed together.
This M25 waterproof power Connector has a waterproof rating of IP67. To assemble the M25 Outdoor Waterproof Connector,only a Screwdriver is required to attach the two wires inside each main body. Once each side is connected, the wiring is fully protected from the elements.
Main Feature
- IP67 rating, suitable for outdoor usin
- Push locking Full waterproof design, much more convenient and easier to operate
- High quality with 12 months waranty
- Panel mount socket,bultt joint available
- Pin quantity from 2 to 22
- cable in any length and process terminals if required
- Customer's drawings and designs are welcome, as we have our own professional R&D team to provide you various solutions
Electrical Parameters
| Number of Poles | 3 |
| Current Rating | 50A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
Operation Parameters
| Voltage Rating | 600VAC max |
| Current Rating | 50A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2 |
Technical Parameters
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
Drawing:
